Open Coil vs Close Coil Winding Explained
If you are deciding between open coil and close coil winding for your heating element production, the real question is not which structure is “better,” but which one fits your thermal design, safety standard, and production stability requirements. The wrong choice does not just affect heating performance — it impacts lifespan, assembly efficiency, certification results, and even your scrap rate. For procurement managers and engineering teams, understanding the structural and manufacturing differences behind these two winding methods is essential before selecting a suitable winding machine.
What Is Open Coil Winding — And Where Is It Commonly Used?
Open coil winding refers to a structure where the spacing between turns is visible and intentionally maintained. In North America, it is often called “open helix heating element.” In parts of Europe, engineers may refer to it simply as “air-spaced resistance coil.” Regardless of terminology, the defining feature is controlled pitch separation.
Structural Characteristics
- Visible spacing between turns
- High surface exposure to air
- Faster heat dissipation
- Lower risk of localized overheating
Because air can circulate freely between the turns, open coil designs are widely used in hair dryers, fan heaters, industrial air ducts, and laboratory heating systems.
Production Considerations
From a manufacturing perspective, open coil winding demands accurate pitch control. Even small variations in spacing can cause uneven heating distribution. Modern CNC coil forming equipment or programmable winding machine systems are typically used to maintain consistency.
However, open coils are more sensitive to vibration and mechanical distortion during assembly. If your downstream process involves manual handling or secondary forming, this structure requires stable support fixtures.
What Is Close Coil Winding — And Why Is It Structurally Different?
Close coil winding (also called “tight wound element” in UK documentation) refers to coils where adjacent turns are nearly touching or fully touching. This structure is common in cartridge heaters, tubular heaters, and embedded heating components.
Structural Characteristics
- Minimal or zero pitch spacing
- Higher mechanical rigidity
- Compact design suitable for embedding
- More concentrated heat distribution
Close coil elements are often used when the heating wire must be inserted into metal tubes, ceramic carriers, or magnesium oxide insulation.
Open Coil vs Close Coil: Performance Comparison
| Factor | Open Coil | Close Coil |
|---|---|---|
| Heat Dissipation | Fast air cooling | Slower, more retained heat |
| Mechanical Strength | Lower | Higher |
| Application Type | Air heating systems | Embedded heaters |
| Winding Precision Required | High pitch control | High tension control |
The key engineering trade-off is airflow versus structural compactness. Procurement teams often overlook how this decision affects the type of coil winding machine required.

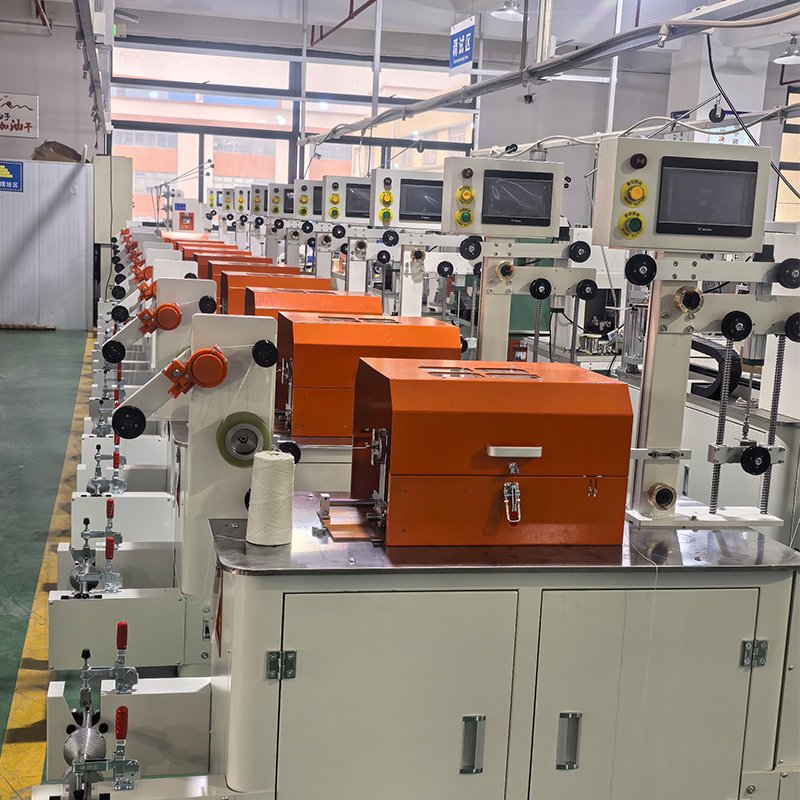

How Does Winding Method Affect Equipment Selection?
Open coil production typically requires:
- Programmable pitch adjustment
- High-speed rotation with stable feed
- Optional stretch calibration unit
Close coil production often requires:
- Precise tension control
- Stronger torque motor
- Compact forming mandrel system
As a heating element equipment manufacturer, we often see buyers request a general-purpose machine without defining coil structure. This leads to mismatched configurations and unnecessary retrofitting.
Why Do Some Buyers Choose the Wrong Structure?
In real projects, the wrong decision usually comes from:
- Copying competitor product designs without thermal testing
- Ignoring certification heat distribution requirements
- Underestimating assembly constraints
For example, a Middle Eastern appliance manufacturer once shifted from open coil to close coil design to reduce vibration damage during shipping. The change improved product durability but required a higher torque coil forming system. Because they evaluated both structure and equipment together, the transition was smooth.
You can see similar project cooperation examples on our client cooperation page.
Regional Understanding Differences
In Germany, engineers emphasize “Luftabstand Heizspirale” (air-gap heating spiral) for safety ventilation. In Southeast Asia, compact heating modules are more common due to space constraints in appliance design. In North America, UL compliance often influences coil spacing and insulation distance.
Understanding regional standards before choosing open or close winding avoids later redesign costs.
Why Experienced Buyers Evaluate Manufacturer Capability
Choosing between open and close coil winding is not only about product design. It also reflects whether your supplier can:
- Customize pitch control software
- Adjust tension calibration for different alloys (NiCr, FeCrAl)
- Provide consistent batch stability
As a dedicated winding equipment factory, our engineering team works directly with heating element producers to configure machine parameters before shipment. You can learn more about our manufacturing background on our about us page.
FAQ
1. Can one machine produce both open and close coil structures?
Yes, if designed with adjustable pitch programming and tension control modules. However, configuration must be defined in advance.
2. What certifications are supported?
Our equipment complies with CE standards and can be adapted for markets requiring UL-related documentation depending on final application integration.
3. What is the typical lead time?
Standard models usually require 15–25 working days. Customized systems may require engineering confirmation before scheduling production.
Final Decision Perspective
Open coil and close coil winding each serve clear engineering purposes. The correct choice depends on airflow requirements, installation structure, mechanical stability, and certification standards — not preference.
If you are currently evaluating which coil structure fits your production line, our team can review your drawings and heating load specifications before recommending equipment configuration. Feel free to reach us via our contact us page for technical discussion.
