Showing 1–16 of 27 results

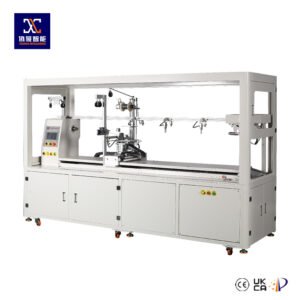

Equipment model XZ-T2201 Rated Voltage 220VAC 50HZ Rated Power 2100W Dimensions L253*W98*H175cm Winding shaft speed 10-3000rpm Applicable core diameter 1.0-12mm Applicable heating wire diameter Ф0.1-1.3mm Winding stroke 0-2000mm Thread length Font10-100mm，End10-100mm Winding spindle 750W servo motor Winding shaft secondary shaft 400W servo motor Cable shaft motor 86 hybrid servo motor Tail top damping shaft 400W servo motor Tail top displacement axis 400W servo motor PLC Taiwan FATEK Human-machine touch screen 7-inch true color touchscreen Ball screw rod Taiwan HIWIN Pneumatic components Xingchen pneumatic

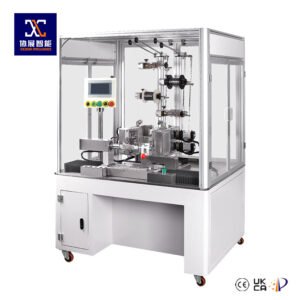

Equipment model XZ-B450P Rated Voltage 220VAC 50Hz Rated Power 3500W Dimensions L130*W110*H185cm Working pressure 6-8mpa Spindle speed 0-500rpm Ripple depth 4-8mm Suitable round heating wire Ф0.3-0.65mm Suitable flat heating wire Width (W) 0.3-3mm, Thickness (T) 0.2-0.3mm Winding stroke 0-125mm Winding motor 400W same servo motor Wire feeding motor Dual 750W servo motor Forming motor Dual 400W servo motor Cable motor 400W servo motor Fonward motor Dual 400W same servo motor PLC Taiwan FATEK Human-machine touch screen 7-inch true color touchscreen Ball screw rod Taiwan Shangyin Pneumatic components Xinchen pneumatic

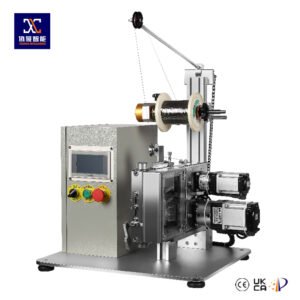

Equipment model: XZ-B315 Rated Voltage: 220VAC 50Hz Rated Power: 1200W Dimensions: L60*W53*H67cm Spindle speed: 0-500rpm Ripple depth: 5-8mm Applicable circular wire heating wire diameter: 0.3-0.6mm Applicable flat wire heating wire diameter: Width (W) 0.3-3mm, Thickness (T) 0.2-0.3mm Winding stroke: 0-125mm Wire feeder shaft motor: 700W servo motor Forming shaft motor: 400W servo motor PLC: Taiwan FATEK Human machine touch screen: 4.3 inch true color touch screen
Equipment model XZ-B360P Rated Voltage 220VAC 50Hz Rated Power 1800W Dimensions L100*W80*H170cm Netweight 280Kg Winding speed 10-600rpm Ripple depth 0-4.5mm Suggested wire diameter Ф0.2-0.7mm Suggested winding stroke 0-125mm Number of same winding 1-3 Winding mode Single/multi-channel winding(1-3segments) Winding shaft motor 400W servo motor Molding motor 2000W servo motor Cable motor 400W servo motor PLC Taiwan FATEK Human-machine touch screen 10-inch true color touchscreen Ball screw rod Taiwan import

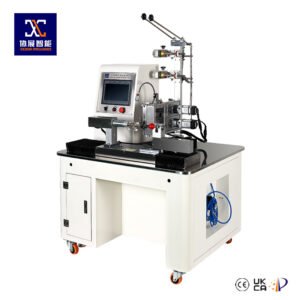

Equipment model XZ-B460P Rated Voltage 220VAC 50Hz Rated Power 1800W Dimensions L110*W90*H165cm Spindle speed 0-500rpm Ripple depth 4-8mm Suitable round heating wire 0.3-0.65mm Suitable flat heating wire 宽(W)0.3-3mm厚(T)0.2-0.3mm Winding stroke 0-125mm Winding shaft motor 400W servo motor Molding motor 400W servo motor Wire feeding motor 750W servo motor Cable motor 400W servo motor Sliding seat motor 400W servo motor PLC Taiwan FATEK Human-machine touch screen 110-inch true color touchscreen Ball screw rod Taiwan HIWIN
Equipment model: XZ-C1040P Rated Voltage: 220VAC 50Hz Rated Power: 500W Dimensions: L190*W60*H115cm Net weight: 235KG Winding speed: 100-500 rpm Pitch: 200片 Suggested heating wire: 0.1-0.5mm Applicable mica sheet size: H(0.3-2.0)*W(10-50)*L(100-1500)mm Winding mode: Single-channel winding/ multi-channel winding(1-10segments) Winding shaft motor: Servo motor Cable motor: High performance stepper motor PLC: Taiwan FATEK Human-machine touch screen: 7-inch color touch screen Ball screw rod: Taiwan import Pneumatic components: AirTAC

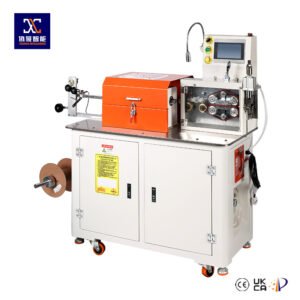

Equipment model XZ-C601P Rated Voltage 220VAC 50Hz Rated Power 1200W Dimensions L160*W55*H150cm Net weight 250Kg Winding speed 100-4000rpm Suggested wire diameter 0.03-0.4mm Cutting ability Automatic cut-off Line pitch 0-8mm Winding shaft motor Servo motor wiredrawing motor High performance stepper motor PLC Taiwan FATEK Human-machine touch screen 7-inch color touch screen Pneumatic components Xingchen pneumatic

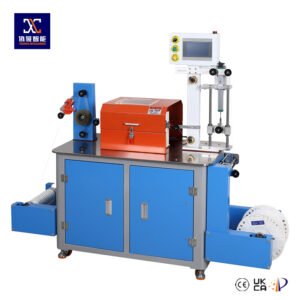

Equipment model XZ-C631P Rated Voltage 220VAC 50Hz Rated Power 1200W Dimensions L160*W50*H145cm Net weight 250Kg Winding speed 100-3000rpm Suitable Diameter Of Heating Wire Ф0.02-0.3mm Cable Pitch 0.1-8mm Winding shaft motor Servo motor wiredrawing motor High performance stepper motor Take-up motor Gear motor PLC Taiwan FATEK Human-machine touch screen 7-inch color touch screen

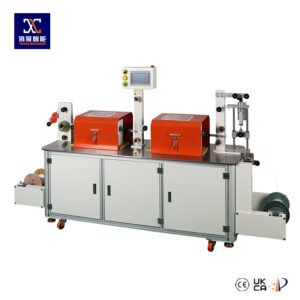

Equipment model XZ-C650P Rated Voltage 220VAC 50Hz Rated Power 1800W Dimensions L230*W55*H150cm Net weight 350KG Winding speed 100-3000rpm Applicable heating wire diameter Ф0.03-4mm Winding shaft motor Servo motor Wiredrawing motor High performance stepper motor PLC Taiwan FATEK Human-machine touch screen 7-inch true color touchscreen

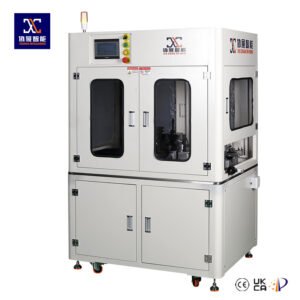

Equipment model XZ-CG100P Rated Voltage 220VAC 50Hz Rated Power 1200W Dimensions L165*W120*H150cm Net weight 246Kg Productivity 100-1600PCS/h Suggested hose diameter 1-2mm Suggested copper wire diameter 0.5-1mm Winding hole pitch 17.5-160mm Winding hole diameter Ф2.6mm Moving motor High performance stepper motor Fiber rope feeding motor High performance stepper motor Copper wire feeding motor High performance stepper motor PLC Taiwan FATEK Human-machine touch screen 7-inch color touch screen Pneumatic components Xingchen pneumatic Ball screw rod Taiwan import

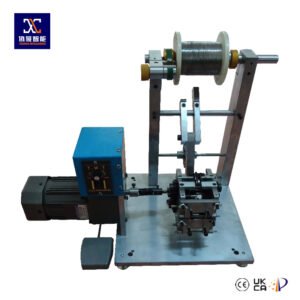

Equipment model: XZ-B310D Rated Voltage: 220VAC 50Hz Rated Power: 200W Dimensions: L50*W35*H60cm Net weight: 40Kg Motor speed: 500rpm Suggested heating wire: Ф0.2-0.7mm Ripple depth: 0-5.5mm Motor driven: Gear motor Tooth box: Same as CNC automatic corrugator

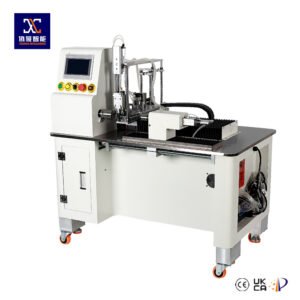

Equipment model XZ-P515P Rated Voltage 220VAC 50Hz Rated Power 800W Dimensions L100*W70*H150cm Net weight 220Kg Winding speed 100-1800rpm Suitable heating wire Diameter 0.1-1mm Winding stroke 0-420mm Wire length 50-100mm Winding motor High performance servo motor Cable motor 86 stepper motor PLC Taiwan FATEK Human-machine touch screen 7-inch color touch screen Ball screw rod Taiwan import Pneumatic components Xinchen pneumatic

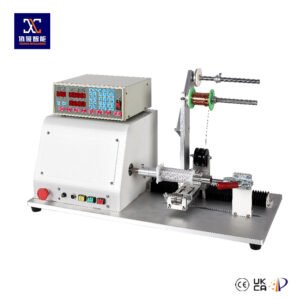

Equipment model: XZ-P570C Rated Voltage: 220VAC 50Hz Rated Power: 1000W Dimensions: L80*W40*H45cm Net weight: 50Kg Winding speed: 0-3000rpm Winding stroke: 0-250mm Winding motor: Brushless DC motor Controller: CNCcontroller Ball screw rod: Taiwan import

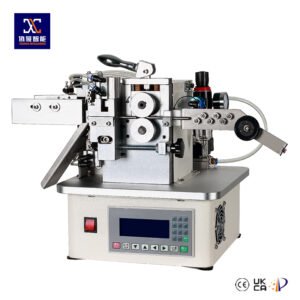

Equipment model XZ-Q120P Rated Voltage 220VAC 50Hz Rated Power 300W Dimensions L45*W35*H40cm Net weight 24.5Kg Productivity 1800PCS/h Suggested copper wire diameter 0.4-1mm Winding hole pitch 15-200mm Winding hole diameter Ф2.6mm Winding shape Switchable among O type, P type, S type, single head style and double head style Winding motor High performance stepper motor Wire feeding motor High performance stepper motor Human-machine touch screen Text Pneumatic components Xingchen pneumatic

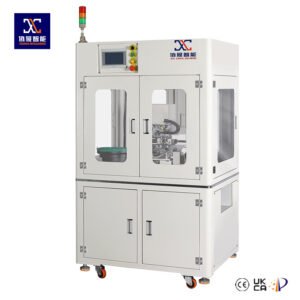

Equipment model XZ-Q132 Rated Voltage 220VAC 50Hz Rated Power 500W Dimensions L120*W95*H181cm Productivity 800PCS/h Circle spacing at both ends 19.5-102mm (CNC adjustable) Circle diameter 2.0-4.0mm Circled shape O-type, P-type, and OP-type adjustable Loading method Vibratory feeder automatic feeding PLC Taiwan FATEK Human machine touch screen 7-inch true color touch screen Screw guide rail Taiwan Shangyin Pneumatic components Xinchen pneumatic

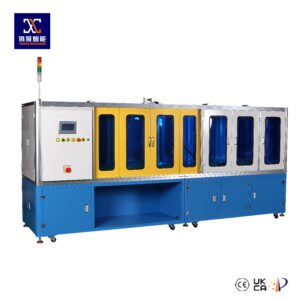

Equipment model XZ-Q2730 Rated Voltage 220VAC 50Hz Rated Power 1200W Dimensions L400*W115*H180cm Applicable cable diameter 5-20mm Applicable core rod diameter 10-100mm Equipment characteristics Both thin and thick threads can be wound CNC adjustment: total length, total number of tums, winding speed Quick installation/retrieval of the core shaft Spindle motor servo motor Pneumatic components Zhejiang Xingchen Electrical components Chint/Omron PLC Taiwan Yonghong Human-machine touch screen 7-inch maintenance control Ball screw Taiwan TBI Linear guide rail Taiwan Shangyin
