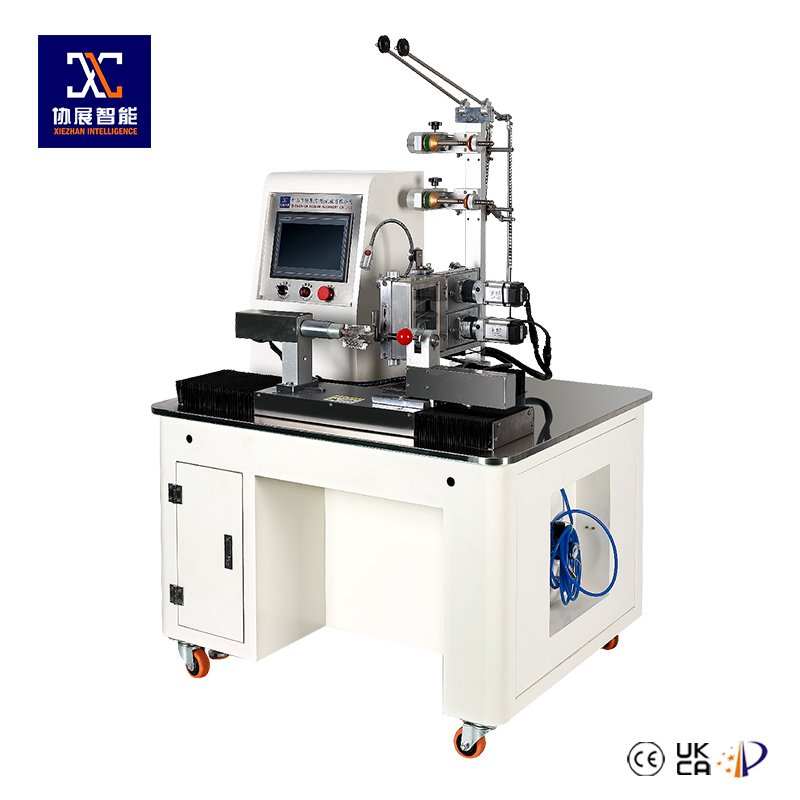

XZ-B460P Deep U Corrugated Heating Wire Winding Machine for Hair Dryer Heating Coil Production
| Equipment model | XZ-B460P |
| Rated Voltage | 220VAC 50Hz |
| Rated Power | 1800W |
| Dimensions | L110*W90*H165cm |
| Spindle speed | 0-500rpm |
| Ripple depth | 4-8mm |
| Suitable round heating wire | 0.3-0.65mm |
| Suitable flat heating wire | 宽(W)0.3-3mm厚(T)0.2-0.3mm |
| Winding stroke | 0-125mm |
| Winding shaft motor | 400W servo motor |
| Molding motor | 400W servo motor |
| Wire feeding motor | 750W servo motor |
| Cable motor | 400W servo motor |
| Sliding seat motor | 400W servo motor |
| PLC | Taiwan FATEK |
| Human-machine touch screen | 110-inch true color touchscreen |
| Ball screw rod | Taiwan HIWIN |
The XZ-B460P Deep U Corrugated Heating Wire Winding Machine is developed for manufacturers producing hair dryer heating coils and similar electric heating elements that require stable deep-U corrugated resistance wire structures. In these applications, uneven wire spacing or inconsistent tension can quickly lead to overheating, product failure, or short service life.
This model is typically chosen by heating element factories, appliance component suppliers, and OEM production lines that need reliable coil forming rather than experimental prototypes.
Compared with general winding machines, the B460P focuses on stable corrugation depth and repeatable forming accuracy, which helps reduce scrap during mass production. Buyers working with nichrome or similar resistance wire should prioritize machines designed specifically for corrugated heating wire structures. Equipment developed by Guangdong Xiezhan is built around real factory production conditions rather than simplified demonstration setups.

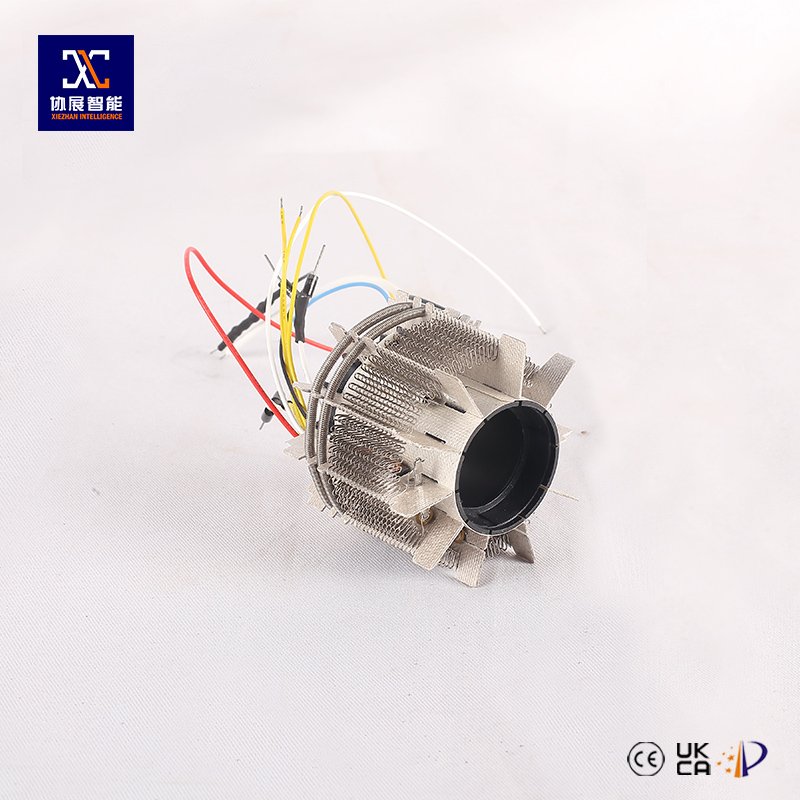

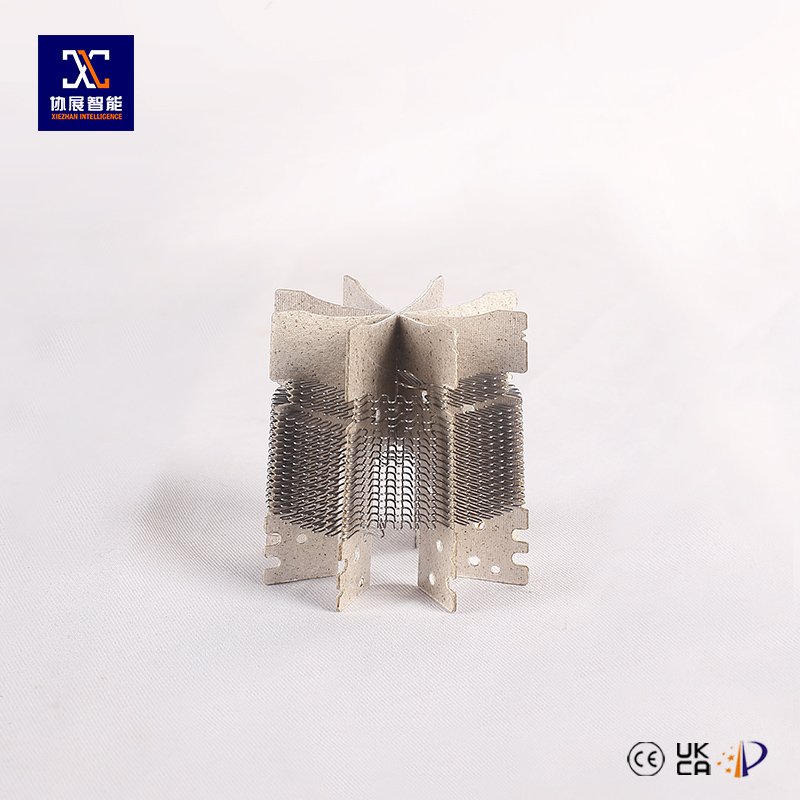

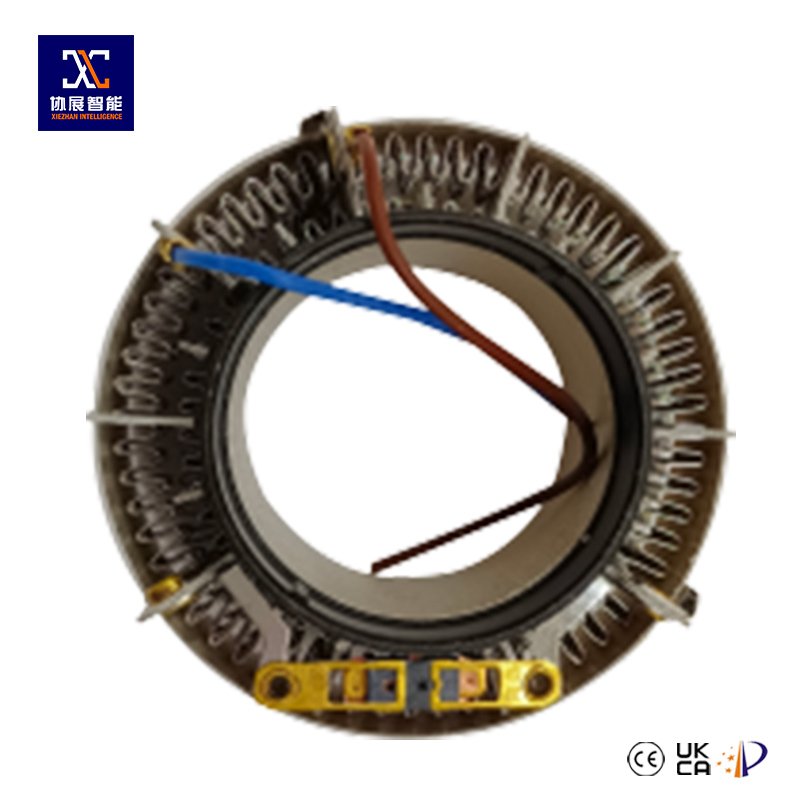

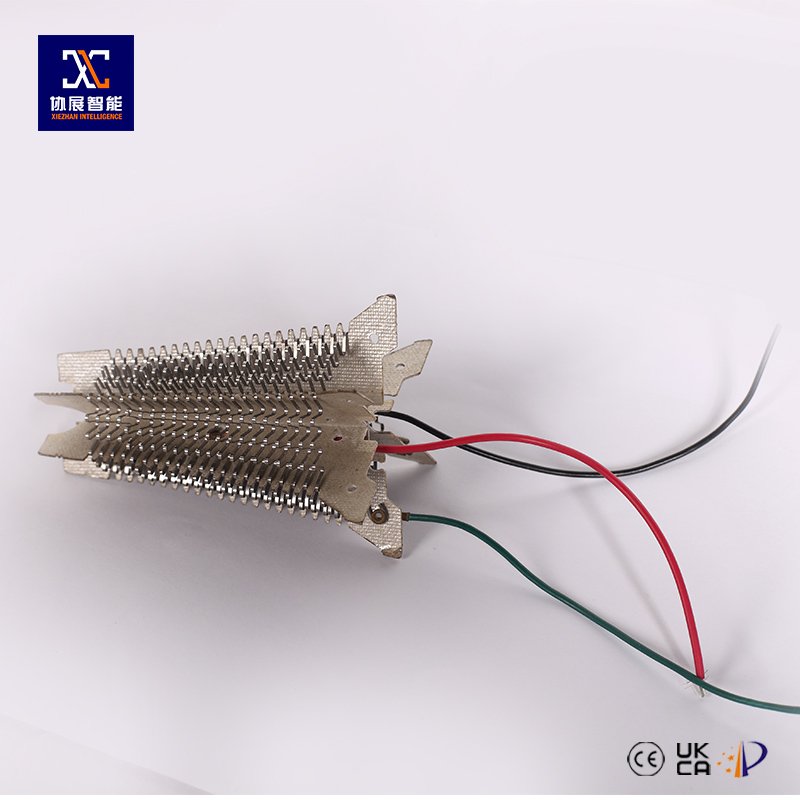

This equipment is suitable to the automatic winding process ofproduction and processing of deep U type heating wire of flat andround for hair dryer heating core, electric wind comb heating core,electric heater heating core, hot wind gun heater, hand dryerheater, clothes dryer heater and other heating products
