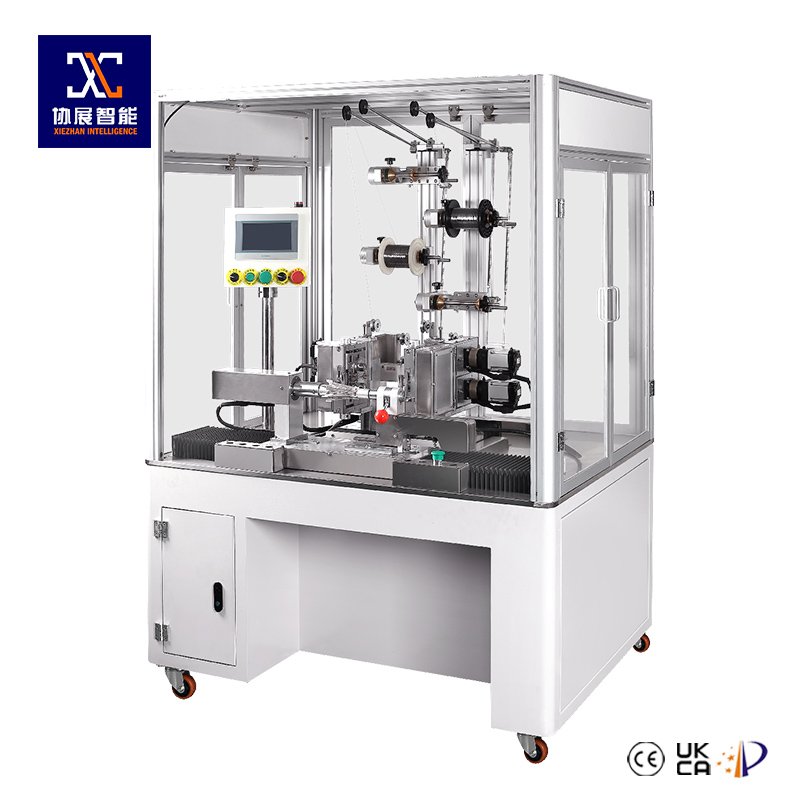

XZ-B450P Heating Wire Winding Machine for Precision Resistance Heating Coil Production
| Equipment model | XZ-B450P |
| Rated Voltage | 220VAC 50Hz |
| Rated Power | 3500W |
| Dimensions | L130*W110*H185cm |
| Working pressure | 6-8mpa |
| Spindle speed | 0-500rpm |
| Ripple depth | 4-8mm |
| Suitable round heating wire | Ф0.3-0.65mm |
| Suitable flat heating wire | Width (W) 0.3-3mm, Thickness (T) 0.2-0.3mm |
| Winding stroke | 0-125mm |
| Winding motor | 400W same servo motor |
| Wire feeding motor | Dual 750W servo motor |
| Forming motor | Dual 400W servo motor |
| Cable motor | 400W servo motor |
| Fonward motor | Dual 400W same servo motor |
| PLC | Taiwan FATEK |
| Human-machine touch screen | 7-inch true color touchscreen |
| Ball screw rod | Taiwan Shangyin |
| Pneumatic components | Xinchen pneumatic |
The XZ-B450P Heating Wire Winding Machine is built for manufacturers producing electric heating coils used in household appliances and standard heating components. In these applications, unstable wire tension or uneven winding density can lead to local overheating and reduced product lifespan.
This machine is suitable for heating element factories, appliance component suppliers, and OEM production lines that require consistent resistance wire winding for daily production.
Compared with more complex corrugated winding systems, the B450P focuses on stable tension control and uniform coil geometry, making it easier to maintain production consistency. For buyers working with nichrome or similar resistance wire, choosing equipment designed for controlled heating wire winding is essential. Machines developed by Guangdong Xiezhan are engineered around real factory production needs rather than temporary demonstration setups.

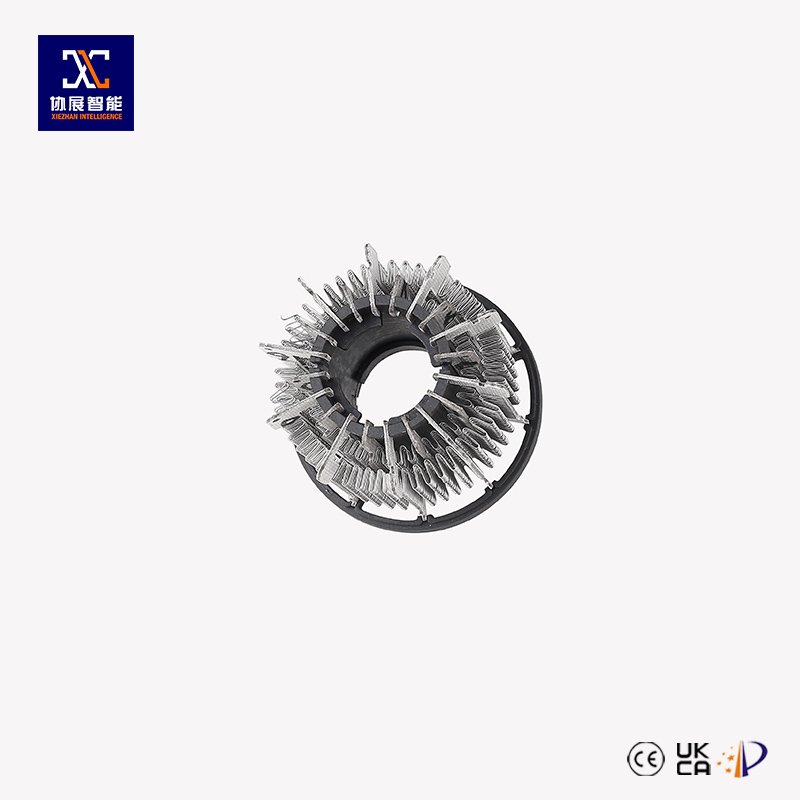

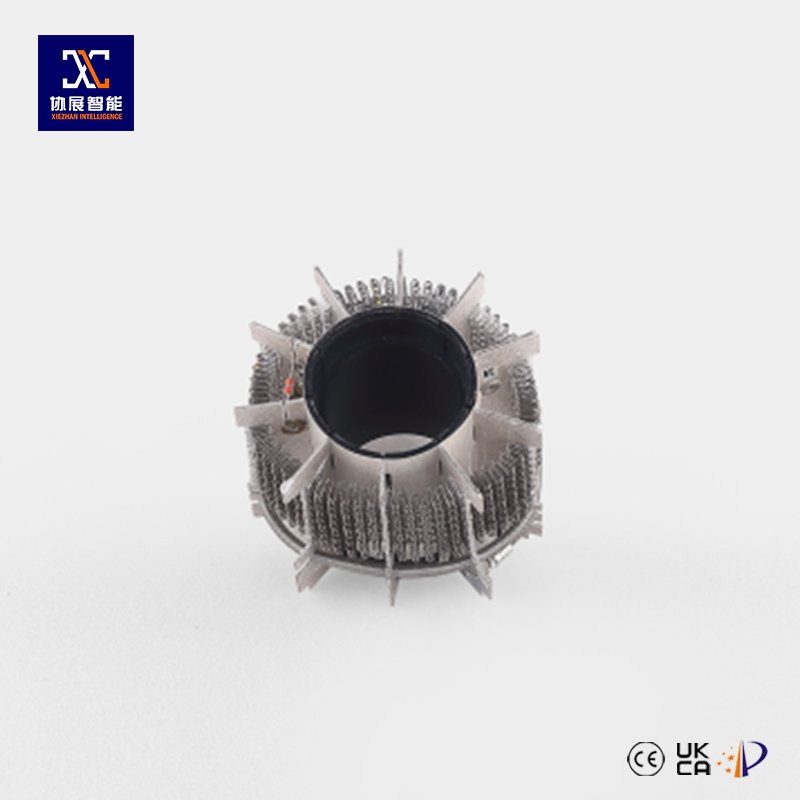

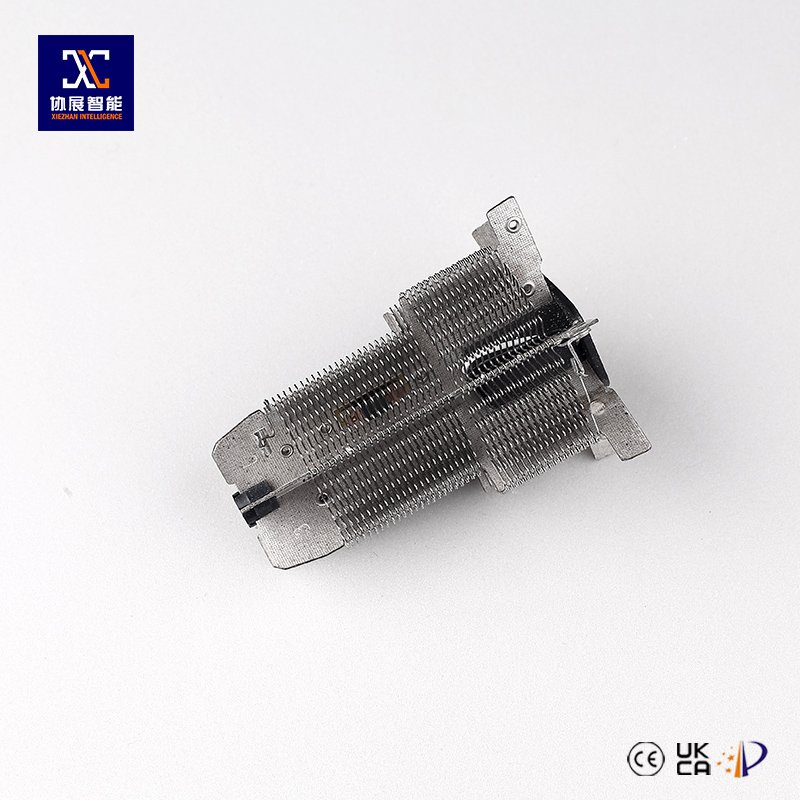

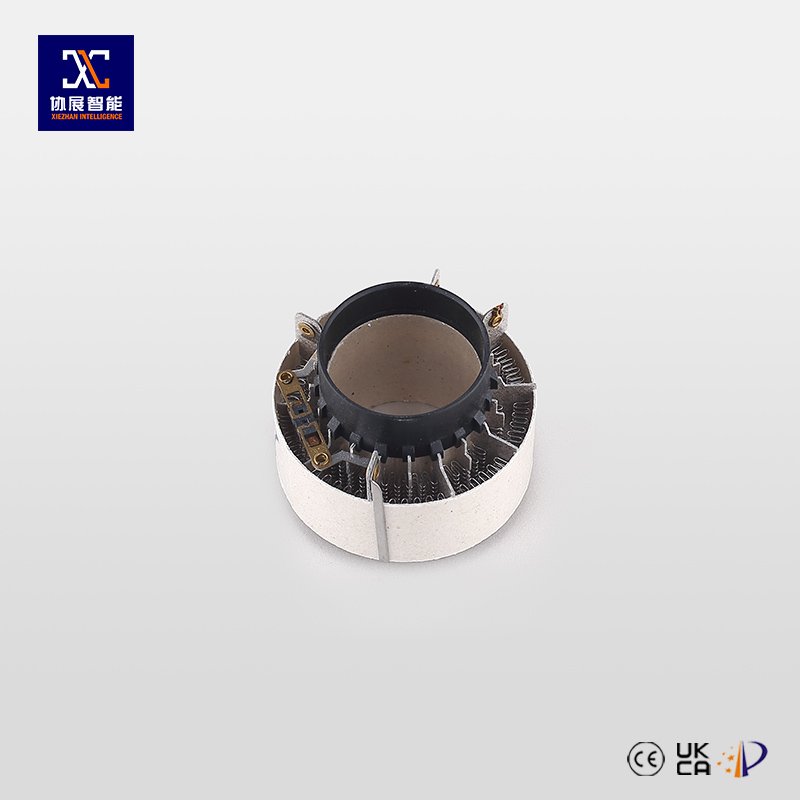

This equipment is suitable to the automatic winding process of production and processing of deep U type heating wire of flat and round for hair dryer heating core, electric wind comb heating core,electric heater heating core, hot wind gun heater, hand dryer heater, clothes dryer heater and other heating products.
