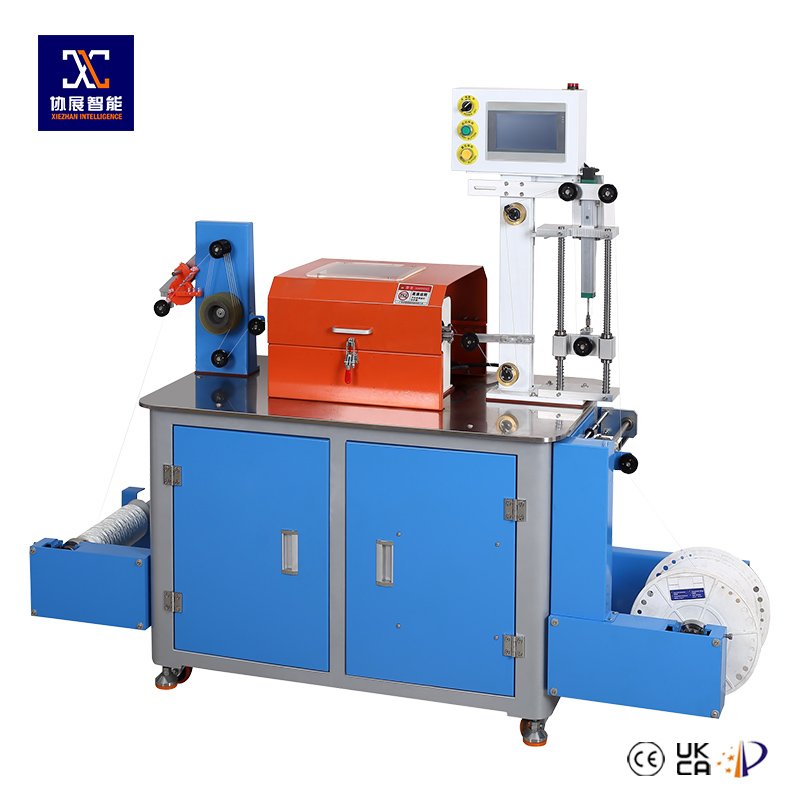

XZ-C631P Fiber Rope Heating Rope Winding Machine
| Equipment model | XZ-C631P |
| Rated Voltage | 220VAC 50Hz |
| Rated Power | 1200W |
| Dimensions | L160*W50*H145cm |
| Net weight | 250Kg |
| Winding speed | 100-3000rpm |
| Suitable Diameter Of Heating Wire | Ф0.02-0.3mm |
| Cable Pitch | 0.1-8mm |
| Winding shaft motor | Servo motor |
| wiredrawing motor | High performance stepper motor |
| Take-up motor | Gear motor |
| PLC | Taiwan FATEK |
| Human-machine touch screen | 7-inch color touch screen |

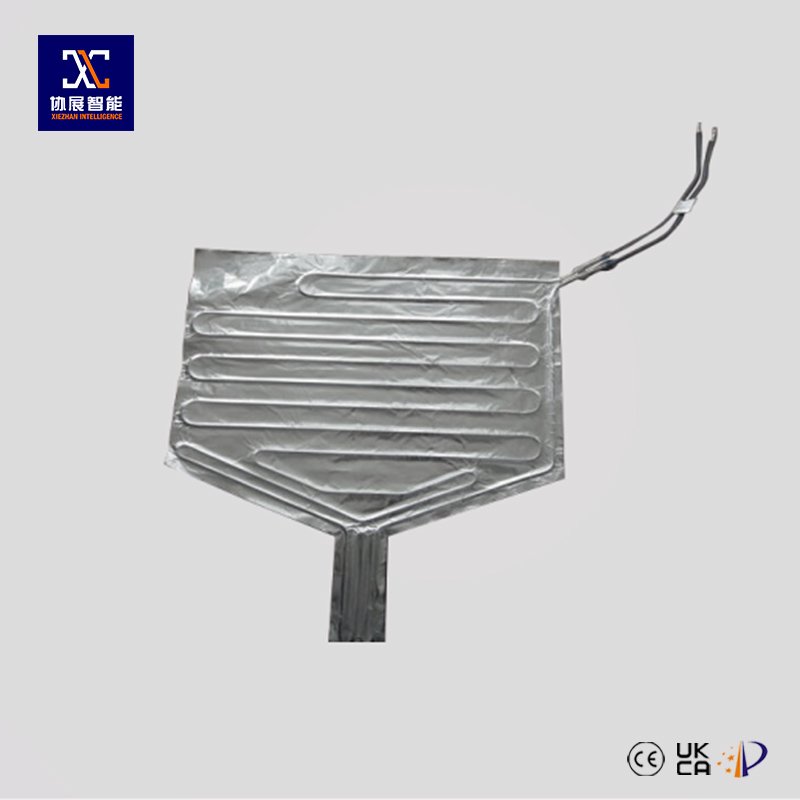

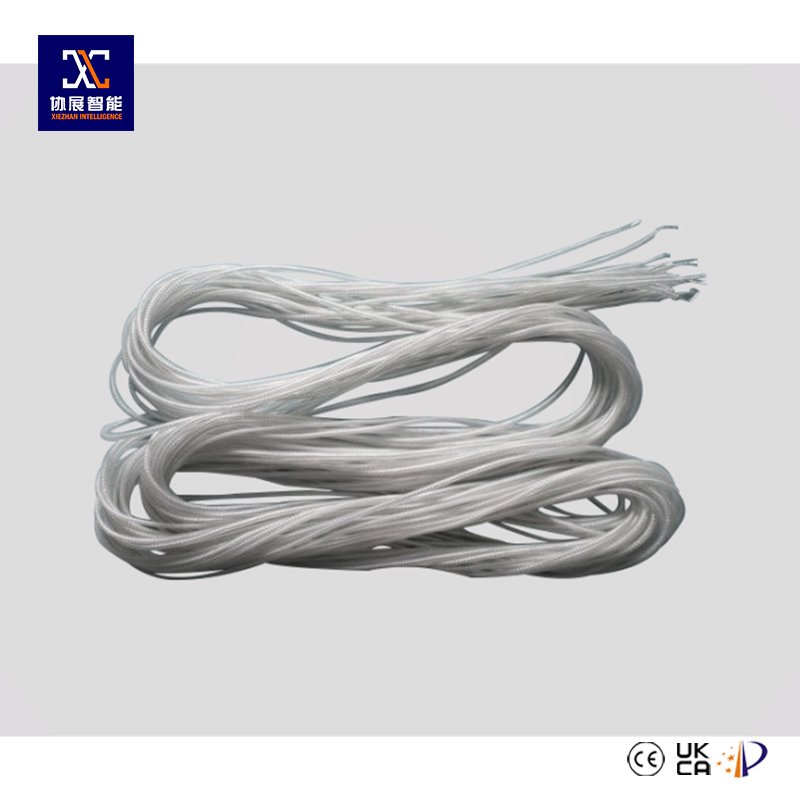

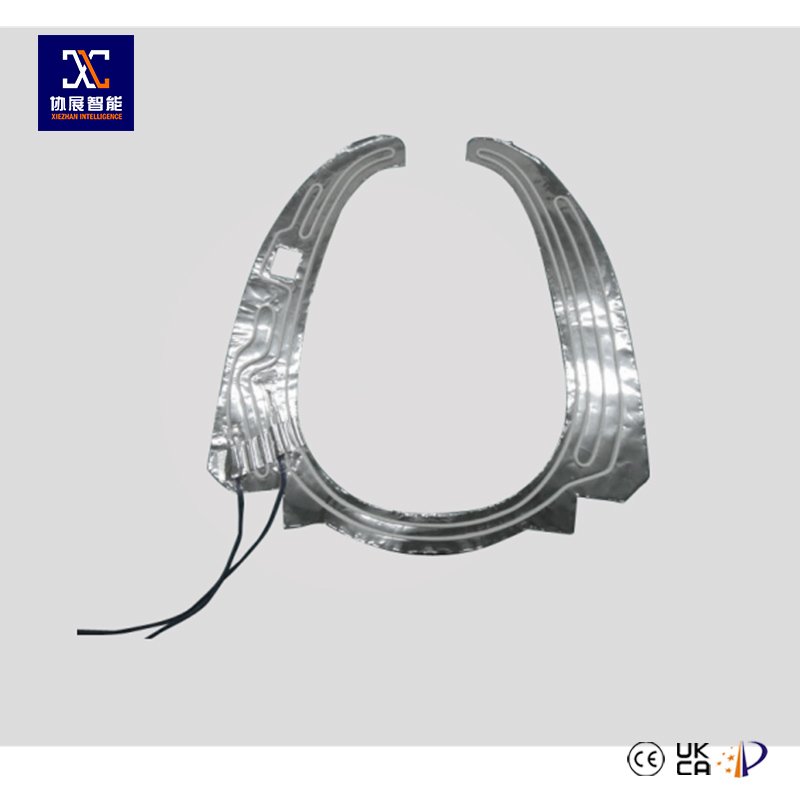

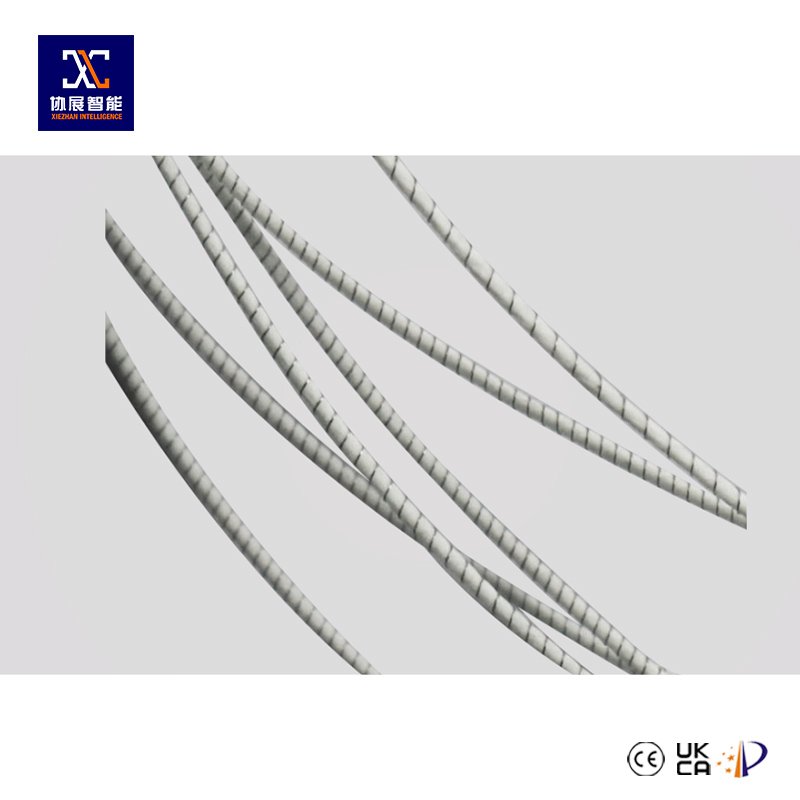

The XZ-C631P Fiber Rope Heating Rope Winding Machine is designed for winding fiber rope heating wires and flexible heating ropes. Research on electric heating materials shows that fiber-based structures improve heat stability and bending resistance in continuous-use applications. This machine is suitable for electronic cigarette heating wires, electric blankets, defrost lines, and various heating ropes requiring uniform winding. Its controlled winding process supports consistent resistance and structural integrity. Developed by Guangdong Xiezhan,the XZ-C631P enables reliable production of fiber-based heating elements for appliance and thermal control systems
.
