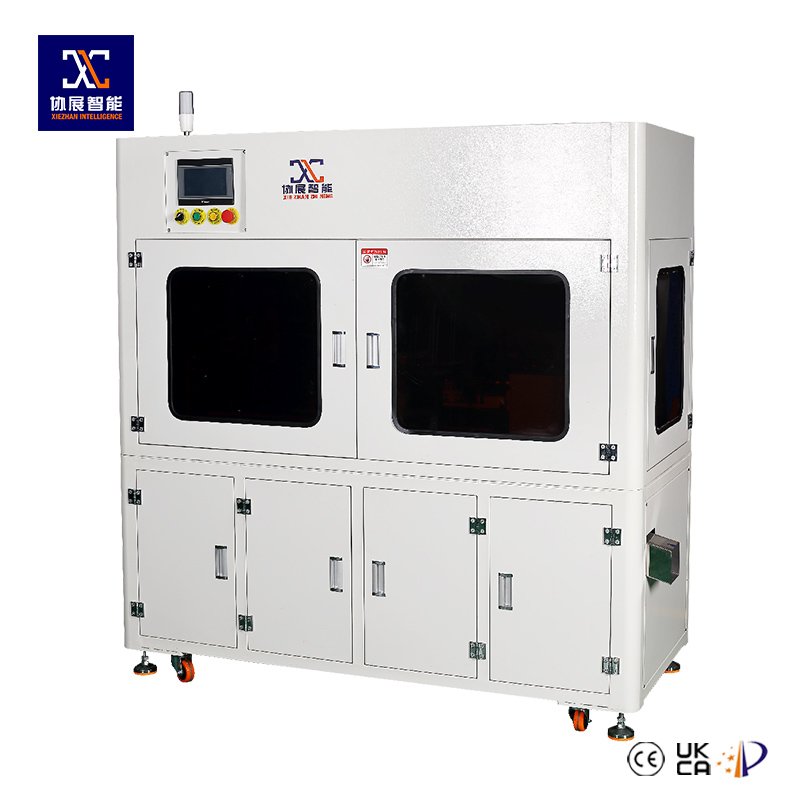

XZ-T2050 Ultra Fine Spring Fully Automatic Winding Machine
| Equipment model | XZ-T2050 |
| Rated Voltage | 220VAC 50HZ |
| Rated Power | 1300W |
| Dimensions | L175*W80*H180cm |
| Applicable cable diameter | 0.1-0.4mm |
| Applicable core rod diameter | 0.1-1.0mm |
| Winding stroke | 10-750mm |
| Reserved length of wire head | 15-100mm |
| Equipment characteristics | Automatic feeding/unloading |
| The parameters such as the number of coils, length, and resistance value are CNC adjustable | |
| Spindle motor | servo motor |
| Pneumatic components | Zhejiang Xingchen |
| Electrical components | Chint/Omron |
| PLC | Taiwan Yonghong |
| Human-machine touch screen | 7-inch true color touchscreen |
| Ball screw | Taiwan TBI |
| Linear guide rail | Taiwan Shangyin |

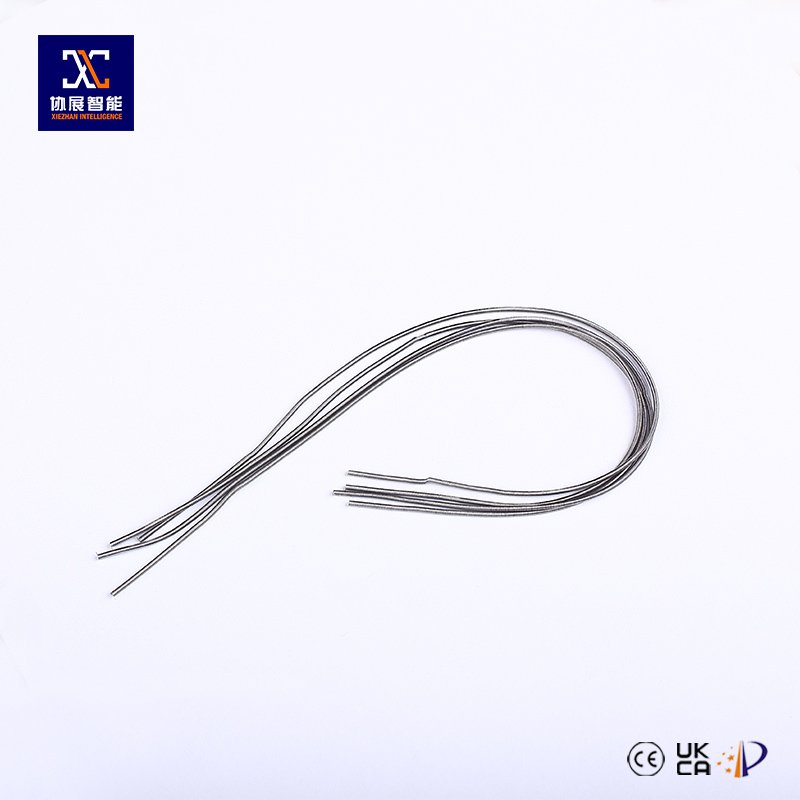

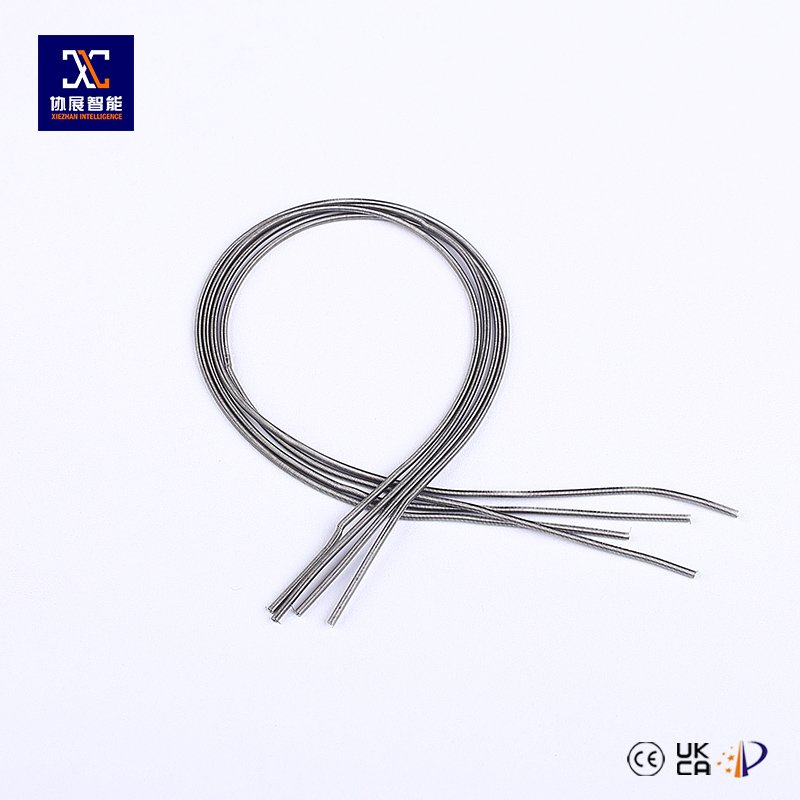

This equipment is specifically designed for producing extremely fine (capillary) springs, which spiral wrap extremely fine metal wires around extremely fine core shafts. It is widely used in the medical spring industry, such as endoscope springs, medical guide wire springs, probe springs, etc.
