XZ-T2100P One Meter Three-Axis CNC Spring Heating Wire Winding Machine
| Equipment model | XZ-T2100P / XZ-T2151 |
| Rated Voltage | 220VAC 50HZ |
| Rated Power | 1200W |
| Dimensions | L178*W80*H1194cm / L228*W80*H1194cm |
| Net weight | 274Kg |
| Winding speed | 100-5000rpm / 100-5000rpm |
| Suitable mandrel diameter | 1.5-15mm / 1.5-15mm |
| Suitable diameter of heating wire | 0.1-1.3mm / 0.1-1.3mm |
| Winding stroke | 0-1000mm / 0-1500mm |
| Wire length | Front end 15-50mm / Tail end 15-160mm |
| Windingmode | Single-channel winding/ multi-channel winding(1-40segments) |
| Configuration | |
| Winding shaft motor | Servo motor / Dual servo motor |
| Cable motor | High performance stepper motor |
| Wire feeding motor | High performance stepper motor |
| PLC | Taiwan FATEK |
| Human-machine touch screen | 7-inch color touch screen |
| Ball screw rod | Taiwan import |
| Pneumatic components | Xingchen pneumatic |

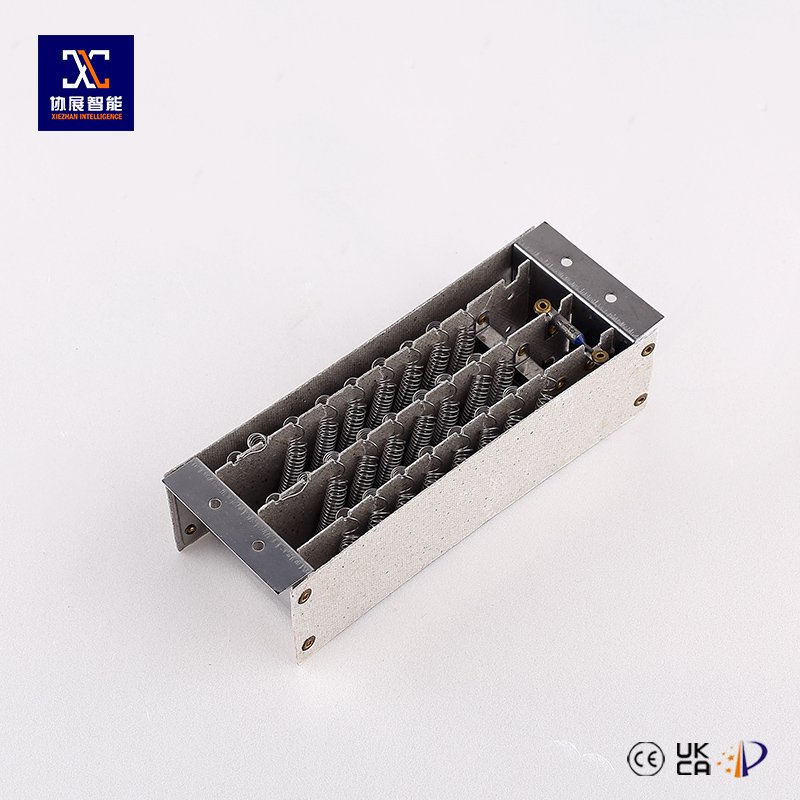

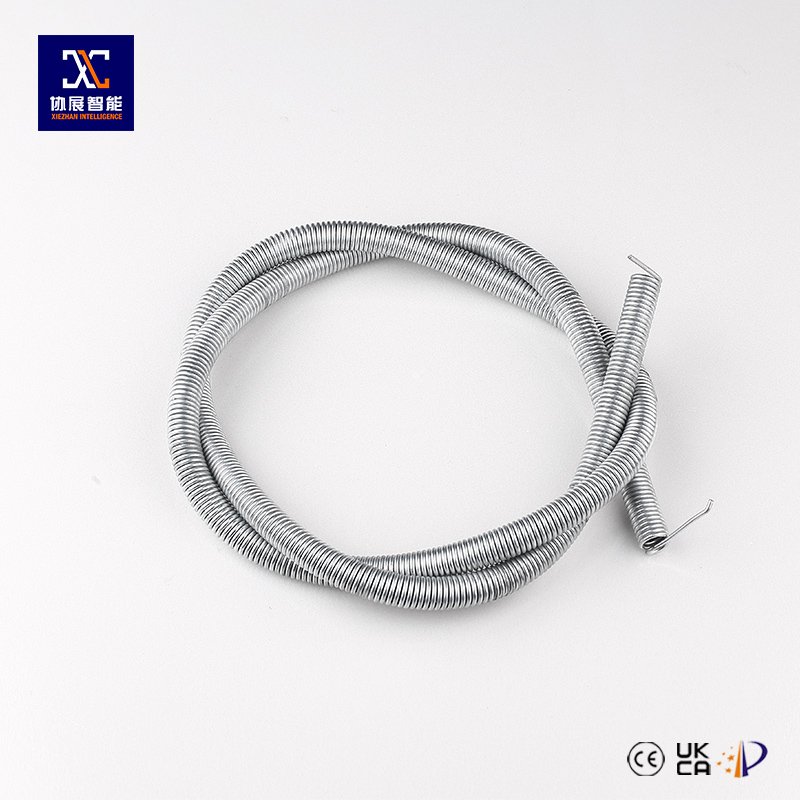

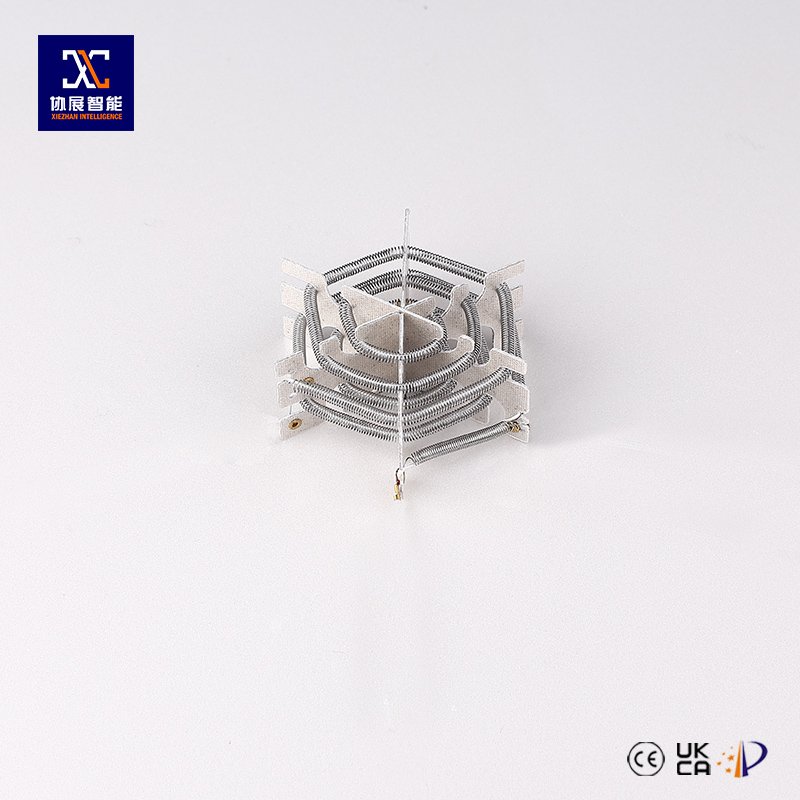

This equipment is suitable for the production and winding of hair dryer heating core, electric wind comb heating core, electric heater heating core, hot wind gun heating core, hand dryer heating core, clothes dryer heating core, popcorn machine heating core, aquarium heating wire, heating tube, heating wire, quartz tube heating wire and other products.
