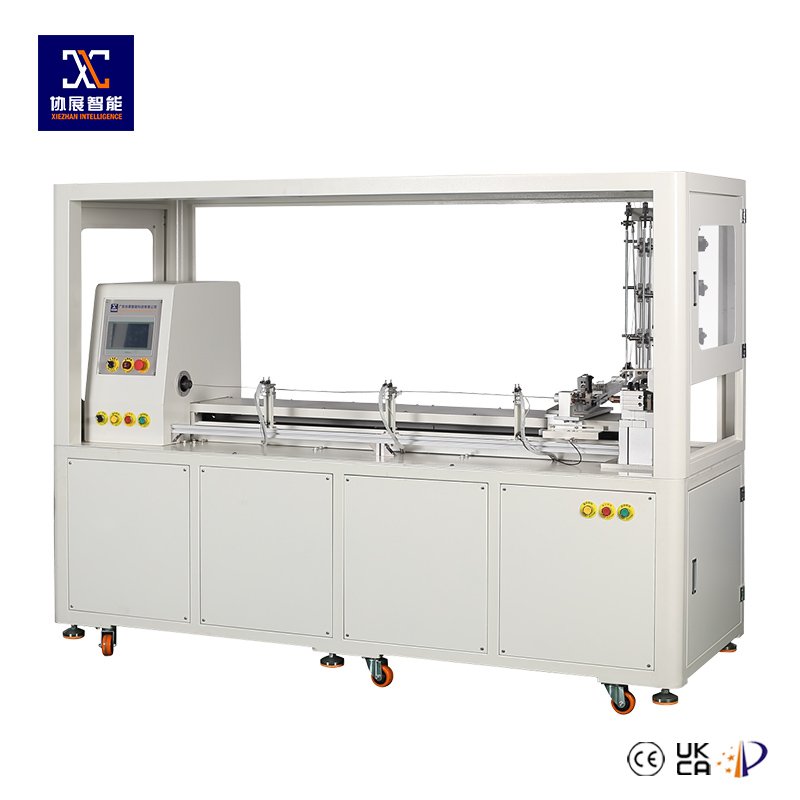

XZ-T2103 Fully Automatic Spring Shaped Heating Wire Winding Machine
| Equipment model | XZ-T2103 |
| Rated Voltage | 220VAC 50HZ |
| Rated Power | 2100W |
| Dimensions | L233*W140*H170cm |
| Winding shaft speed | 100-3000rpm |
| Applicable core diameter | 0.5-6.0mm |
| Applicable heating wire diameter | Ф0.1-1.3mm |
| Equipment characteristics | Multi wire winding |
| Infinite spring length | |
| No wire ends at both ends | |
| Winding shaft motor | 750W server motor |
| Clamping motor | 400W servo motor |
| Wire feeding motor | 750W servo motor |
| Proximity switch | Taiwan ROKO |
| PLC | Taiwan FATEK |
| Human-machine touch screen | 7-inch true color touchscreen |
| Ball screw rod | Taiwan import |
| Pneumatic components | Xingchen pneumatic |

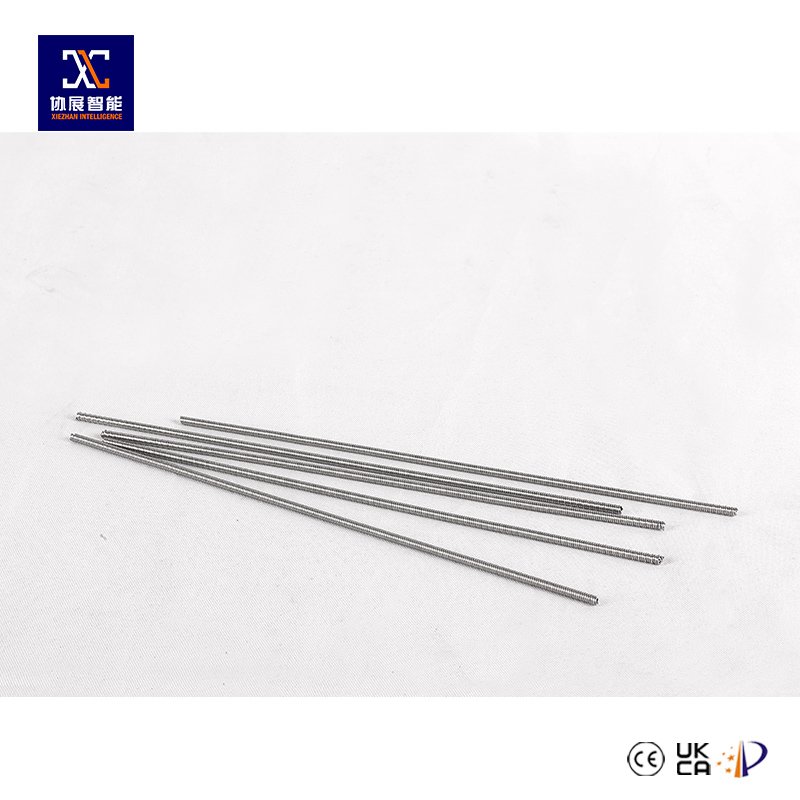

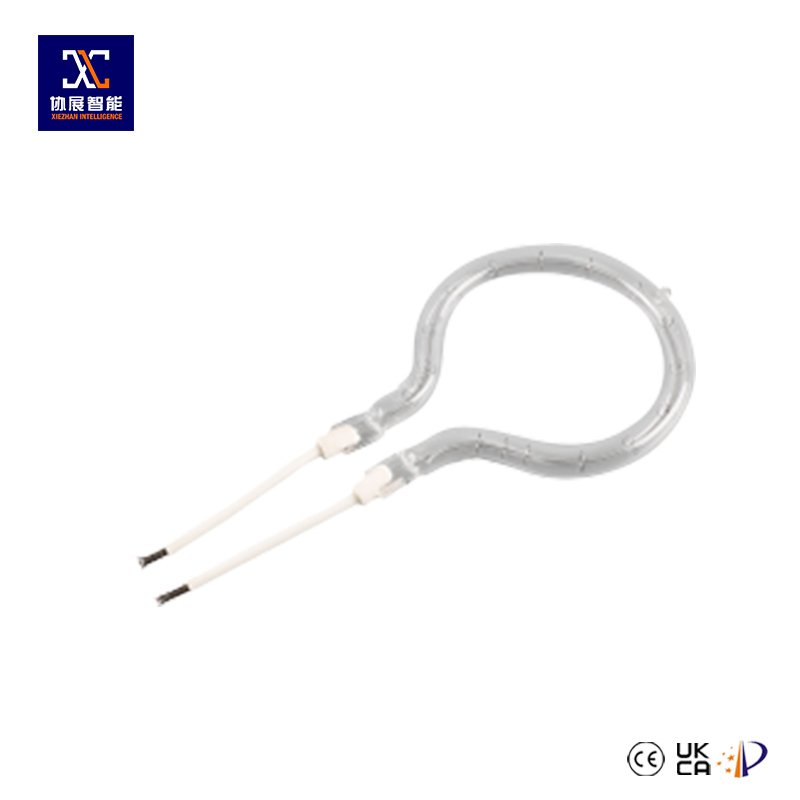

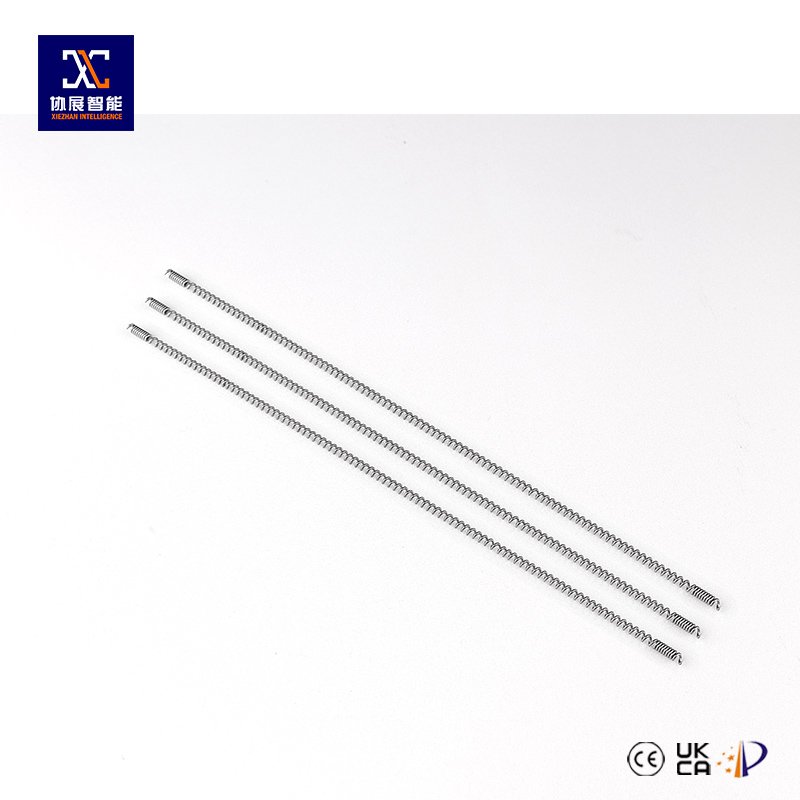

This equipment is applicable to the production of hairdryer heating core, electric air comb heating core, electric heater heating rack, Heat gun heating core, hand dryer heating rack, heating plate, quartz heating tube, ceramic heating core, industrial heating tube, industrial furnace and other products, such as wireless head spring heating wire winding processing.
Featured Products
-
XZ-T2201 – FULLY AUTOMATIC DUAL HEAD DRIVE FIVE AXIS CNC SPRING HEATING WIRE WINDING MACHINE
-
XZ-B450P Heating Wire Winding Machine for Precision Resistance Heating Coil Production
-
XZ-B315 Deep U Heating Wire Sampling Machine
-
XZ-B360P Deep V Corrugated Heating Wire Winding Machine
-
XZ-B460P Deep U Corrugated Heating Wire Winding Machine for Hair Dryer Heating Coil Production
-
XZ-C1040P Automatic Mica Sheet Heating Wire Winding Machine
In-House Research & Equipment Development
Our equipment design and development are carried out internally, focusing on resistance wire forming, winding stability, and mechanical structure optimization. R&D work is closely connected to real manufacturing conditions, allowing continuous adjustment based on practical production requirements.

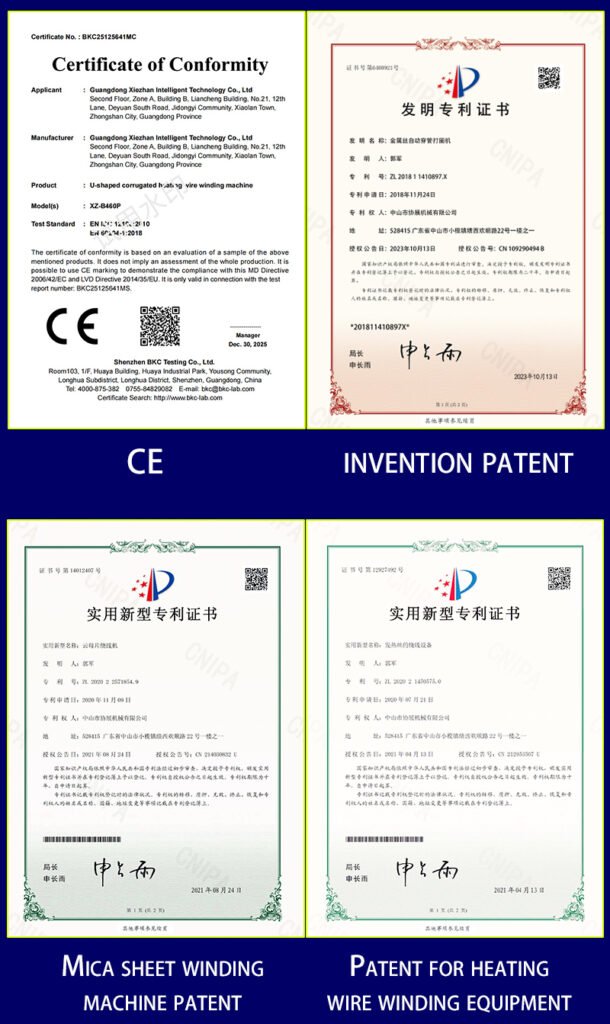

Certificates & Technical Documentation
