XZ-T2201 – FULLY AUTOMATIC DUAL HEAD DRIVE FIVE AXIS CNC SPRING HEATING WIRE WINDING MACHINE
| Equipment model | XZ-T2201 |
| Rated Voltage | 220VAC 50HZ |
| Rated Power | 2100W |
| Dimensions | L253*W98*H175cm |
| Winding shaft speed | 10-3000rpm |
| Applicable core diameter | 1.0-12mm |
| Applicable heating wire diameter | Ф0.1-1.3mm |
| Winding stroke | 0-2000mm |
| Thread length | Font10-100mm，End10-100mm |
| Winding spindle | 750W servo motor |
| Winding shaft secondary shaft | 400W servo motor |
| Cable shaft motor | 86 hybrid servo motor |
| Tail top damping shaft | 400W servo motor |
| Tail top displacement axis | 400W servo motor |
| PLC | Taiwan FATEK |
| Human-machine touch screen | 7-inch true color touchscreen |
| Ball screw rod | Taiwan HIWIN |
| Pneumatic components | Xingchen pneumatic |

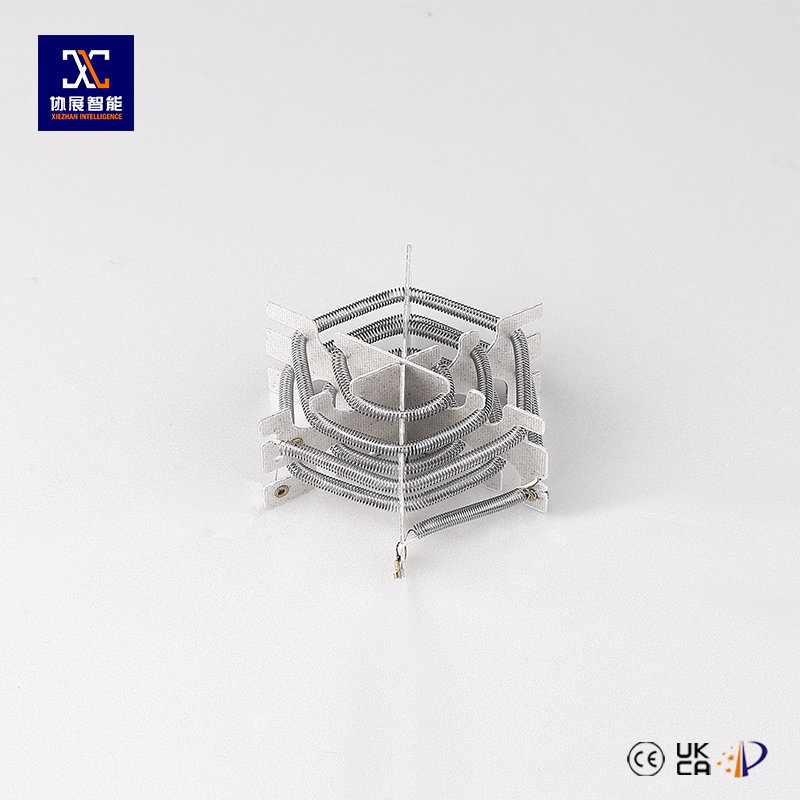

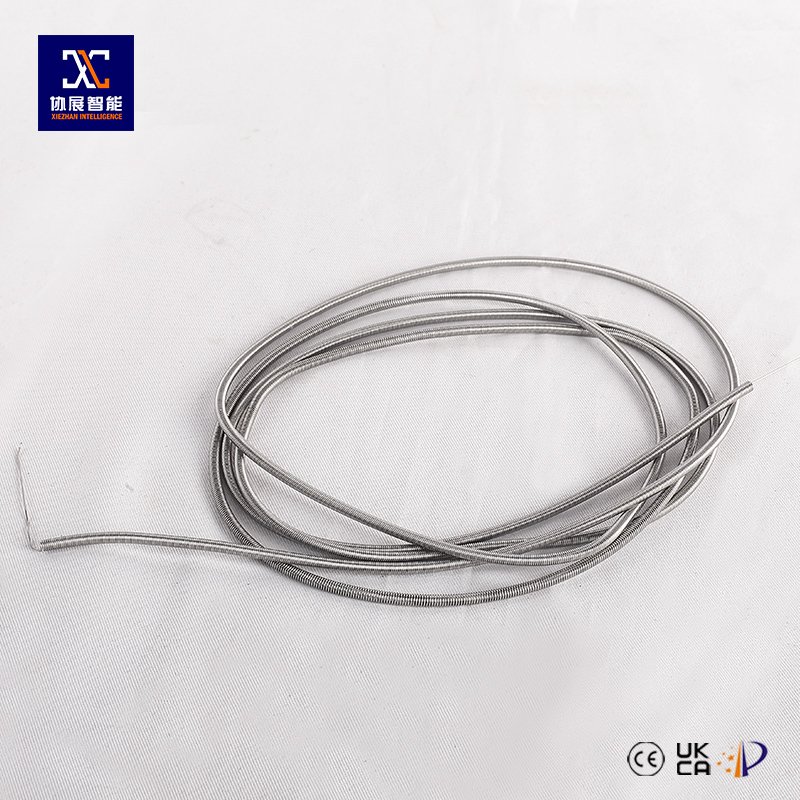

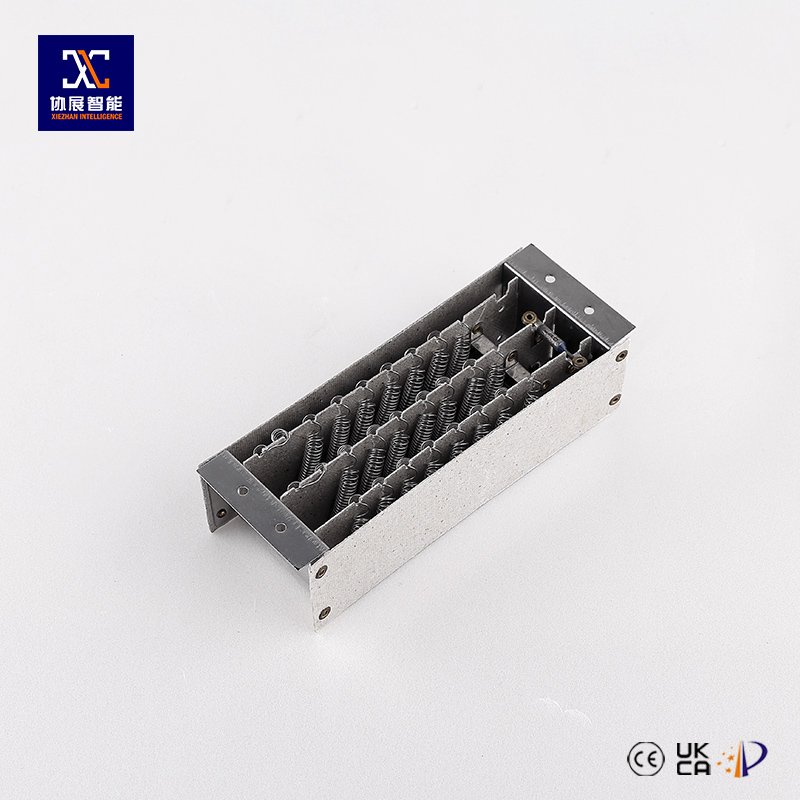

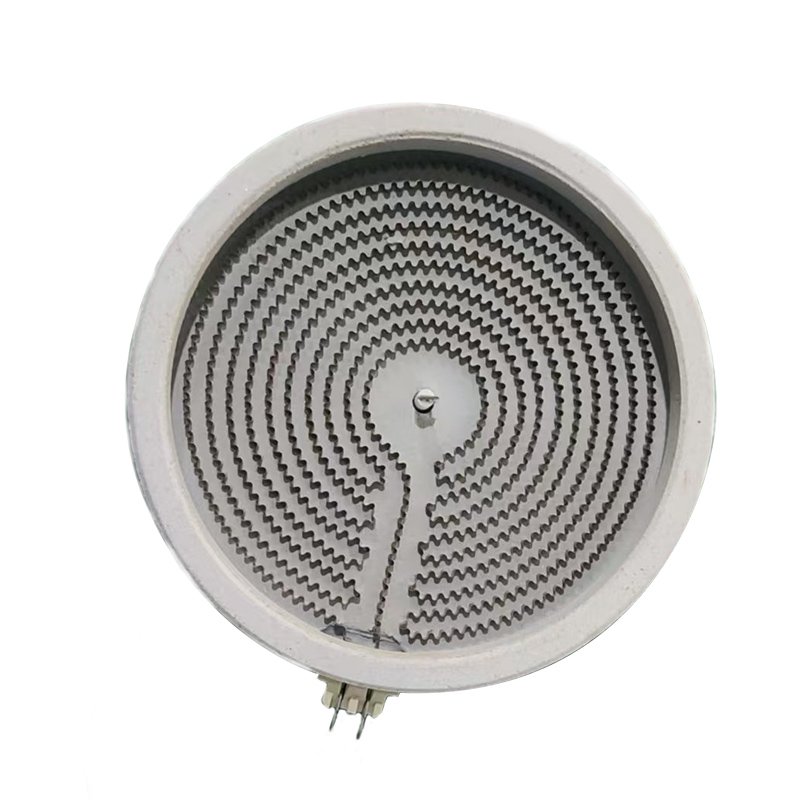

This equipment is applicable to the spring heating wire winding processing of hair dryer heating elements, electric air comb heating elements, electric heater heating frame, Heat gun heating elements, hand dryer heating frame, heating plate, quartz heating tube, ceramic heating elements, electric furnace plate, industrial furnace, industrial oven and other products.
