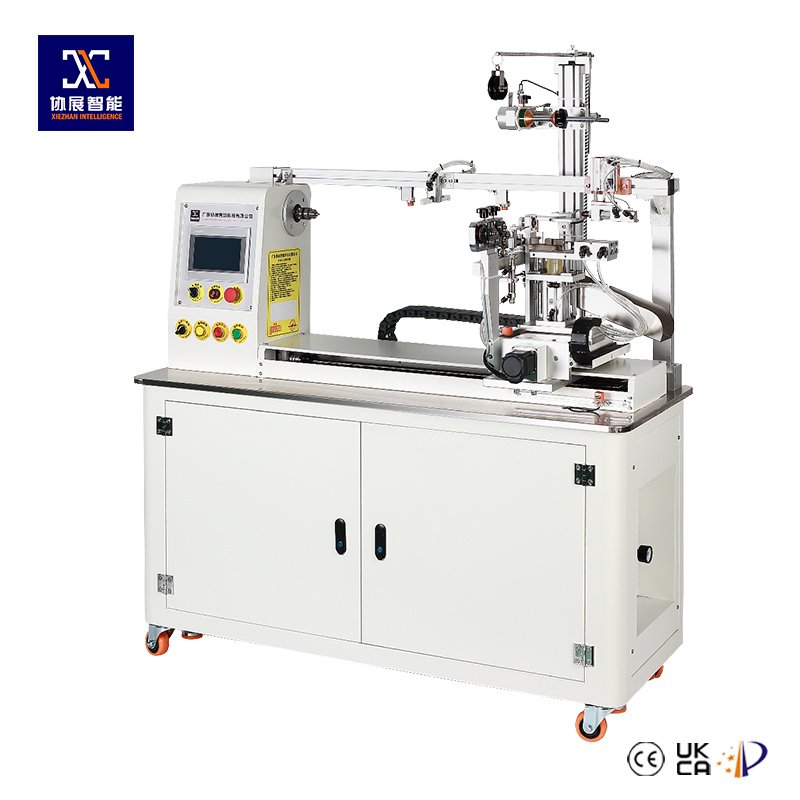

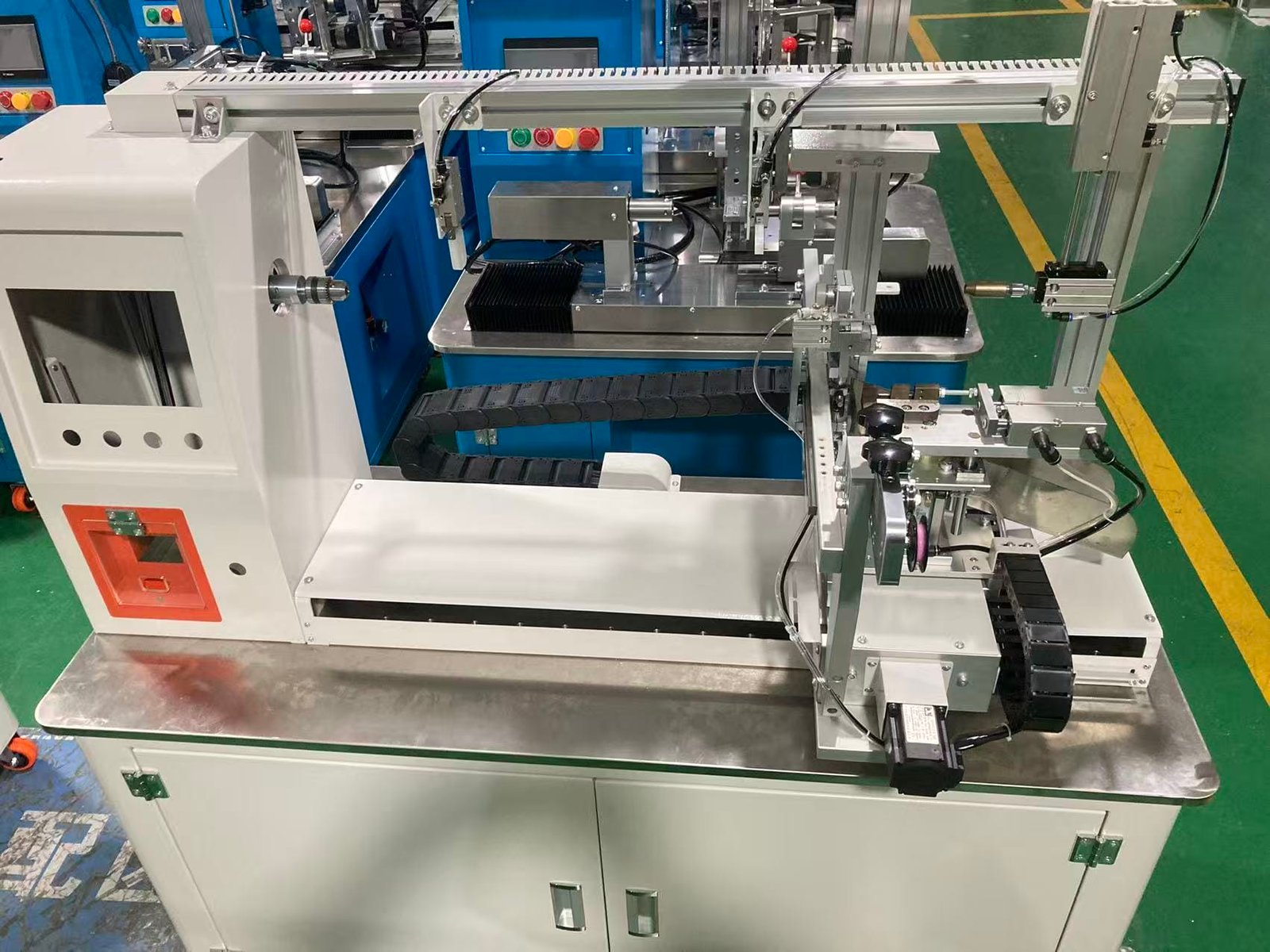

XZ-T240P CNC Triaxial Spring Heating Wire Winding Machine
| Equipment model | XZ-T240P/XZ-T270P |
| Rated Voltage | 220VAC 50Hz |
| Rated Power | 1200W |
| Dimensions | L100*W80*H170cm/L140*W80*H170cm |
| Net weight | 200KG |
| Winding speed | 100-5000rpm/100-5000rpm |
| Suitable mandrel diameter | 1.5-15mm/1.5-15mm |
| Suitable diameter of heating wire | 0.1-1.3mm/0.1-1.3mm |
| Winding stroke | 0-400mm/0-700mm |
| Wire length | Front end 15-50mm/Tail end 15-160mm |
| Windingmod | Single/multi-channel winding(1-40segments) |
| Configuration | |
| Winding shaft motor | Servo motor |
| Wire feeding motor | High performance stepper motor |
| Cable motor | High performance stepper motor |
| PLC | Taiwan FATEK |
| Human-machine touch screen | 7-inch color touch screen |
| Pneumatic components | Xingchen pneumatic |

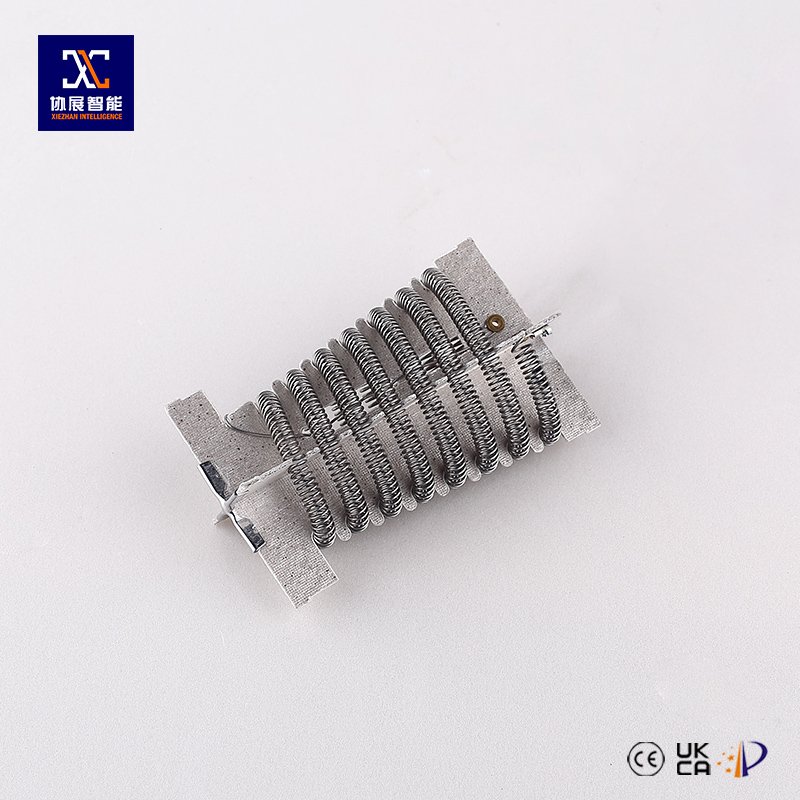

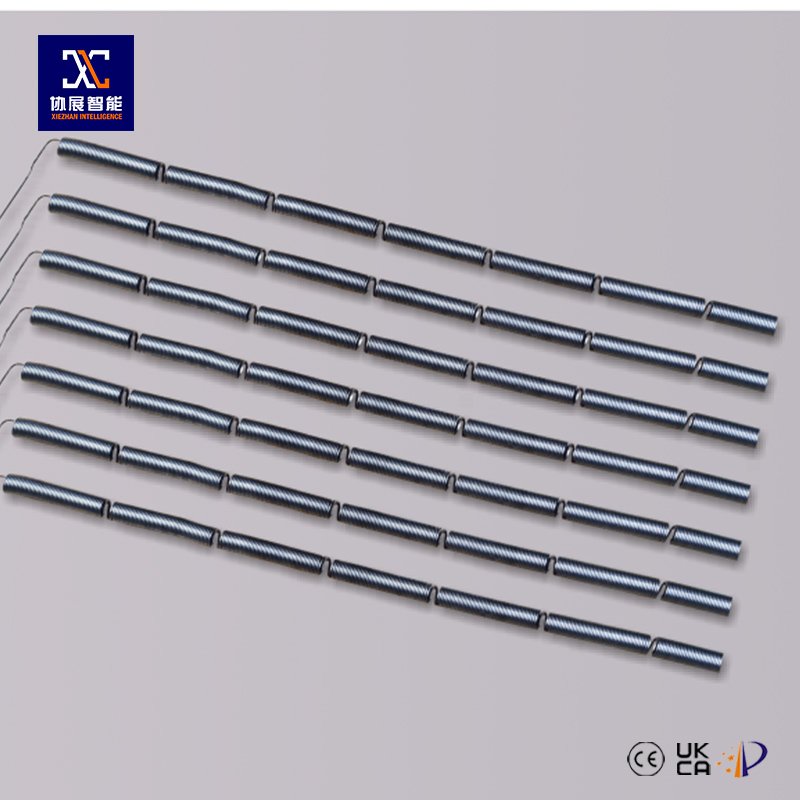

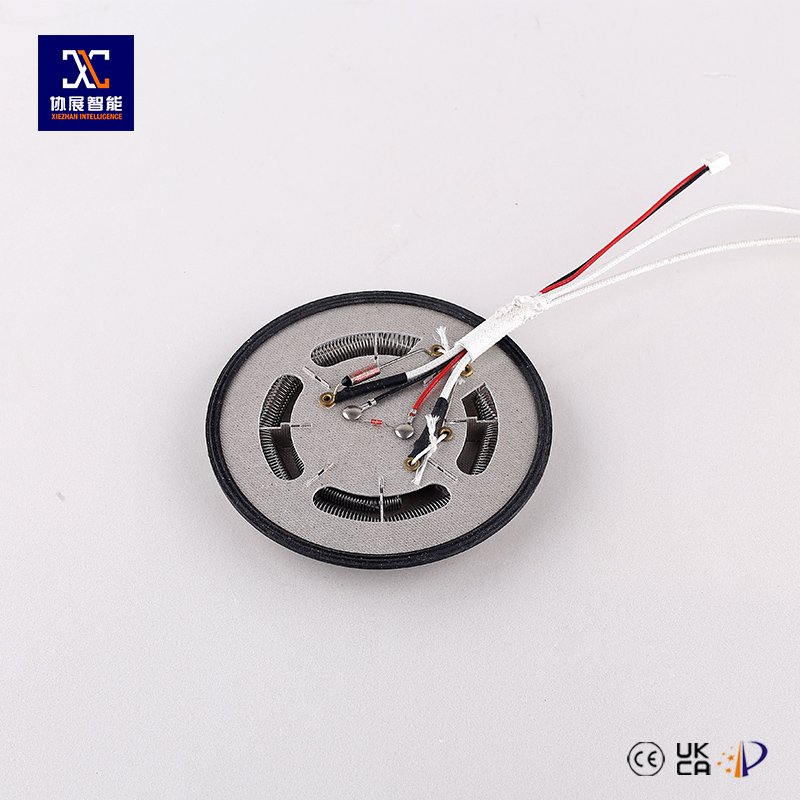

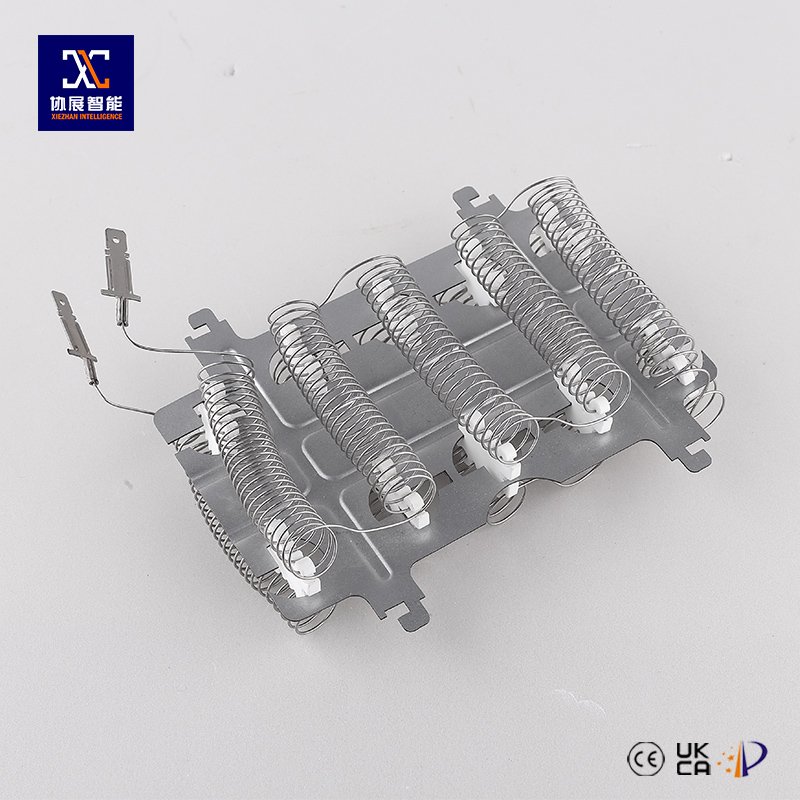

This equipment is suitable for the winging process for hair dryer heating wire, electric wind comb heating wire, electric heater heating wire, hot wind gun heating wire, hand dryer heating wire, clothes dryer heating wire, aquarium heating wire, heating plate, heating tube, quartz tube heating wire, popcorn machine heating wire and other products.
