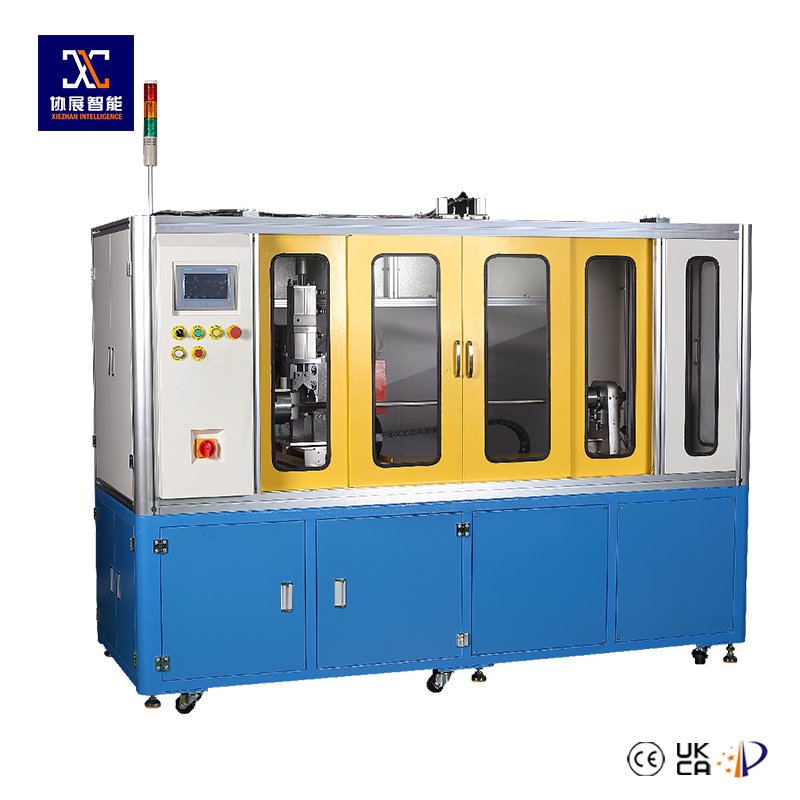

XZ-T2720 Spring Cable Automatic Winding Machine
| Equipment model | XZ-T2720 |
| Rated Voltage | 380VAC 50Hz |
| Rated Power | 3000W |
| Dimensions | L250*W135*H182cm |
| Applicable cable diameter | 5-20mm |
| Applicable core rod diameter | 10-100mm |
| Reserved length of wire head | 100-2000mm |
| Winding stroke | 100-1400mm |
| Equipment characteristics | Both thin and thick threads can be wound |
| CNC adjustment: total length, total number of tums, winding speed | |
| Quick installation/retrieval of the core shaft | |
| Spindle motor | servo motor |
| Pneumatic components | Zhejiang Xingchen |
| Electrical components | Chint/Omron |
| PLC | Taiwan Yonghong |
| Human-machine touch screen | 7-inch maintenance control |
| Ball screw | Taiwan TBI |
| Linear guide rail | Taiwan Shangyin |

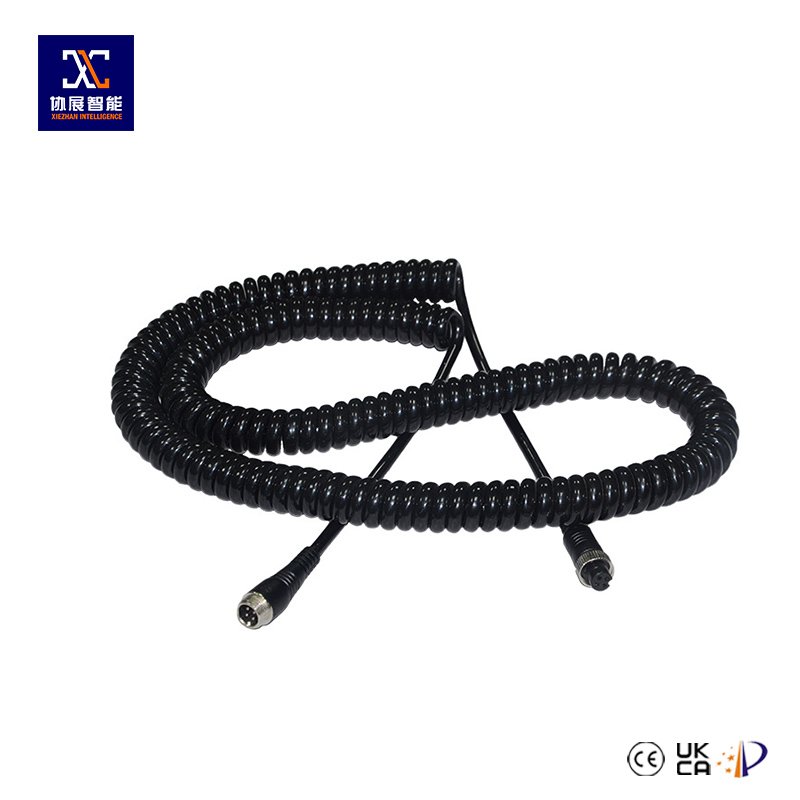

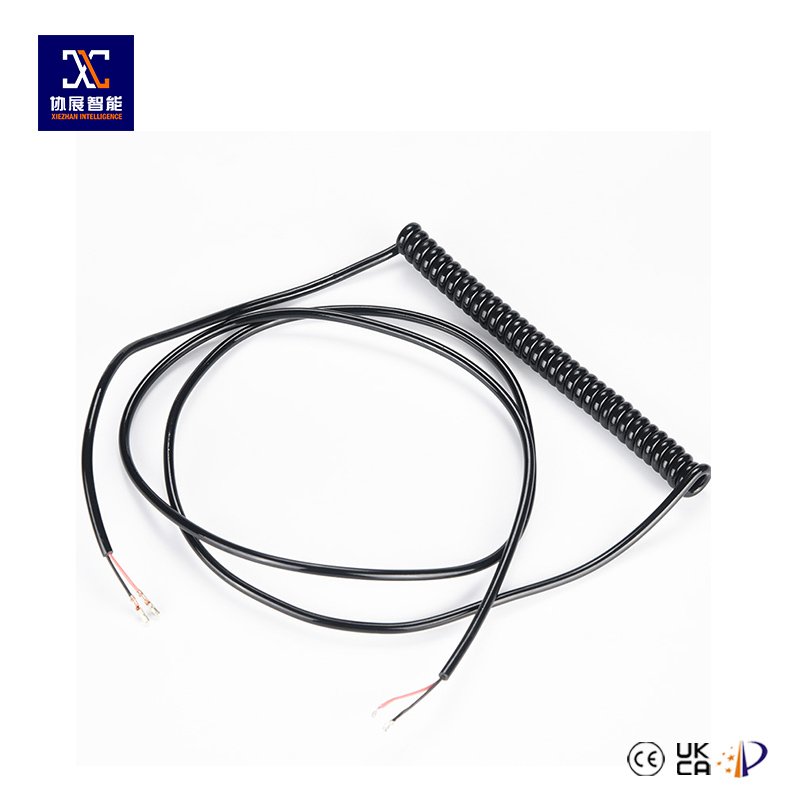

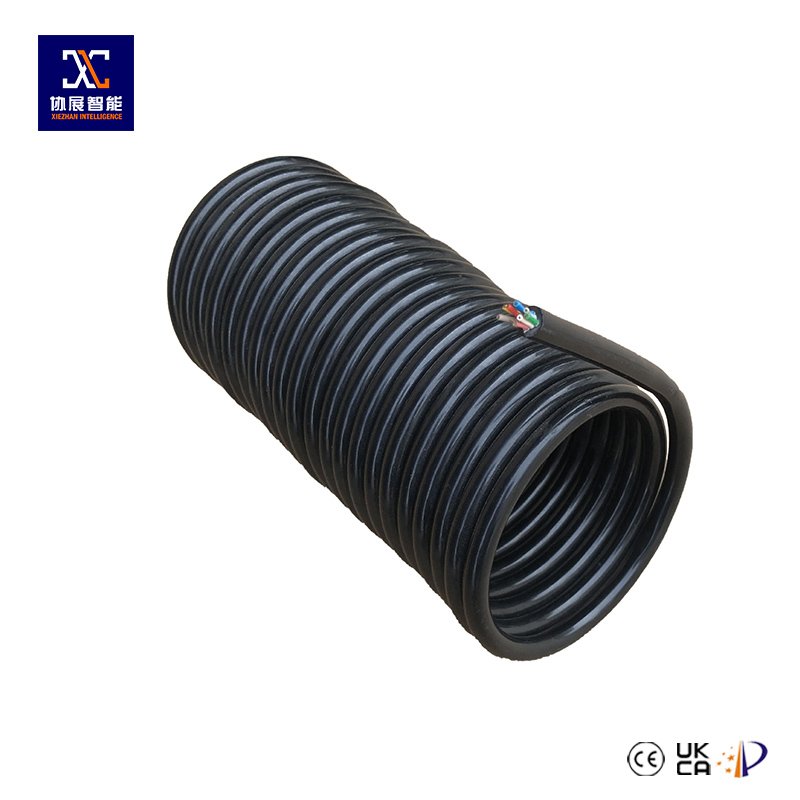

This device is mainly used for winding cables around the core shaft and then heating and shaping them. Its products are used in the process of making spring connection wires for trailer connection wires, high-speed rail connection wires, car tailboard connection wires, new energy charging gun connection wires, etc.
