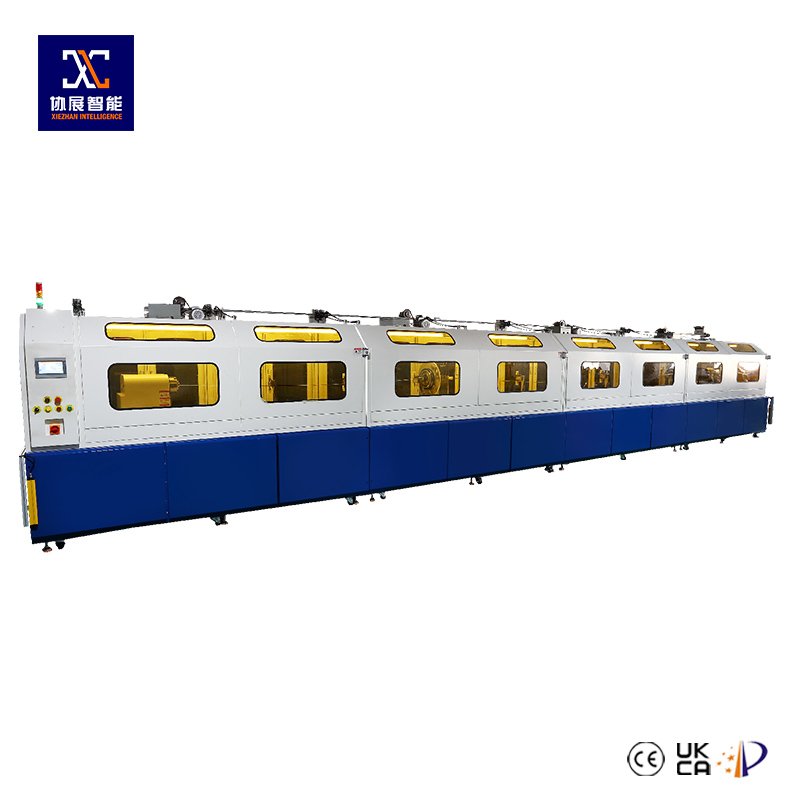

XZ-T2850 Super Long Spring Heating Wire Winding Machine
| Equipment model | XZ-T2850 |
| Rated Voltage | 380VAC 50Hz |
| Rated Power | 4200W |
| Dimensions | L1180*W130*H190cm |
| Winding shaft speed | 100-3000rpm |
| Applicable core diameter | 2.0-18mm |
| Applicable heating wire diameter | 0.1-2.0mm |
| Equipment characteristics | Winding super long spring heating wire |
| Automatic loading and unloading | |
| Winding and wrapping dual modes | |
| Winding spool | 2000W servo motor X2 units |
| Surrounding spool | 1800W servo motor |
| Mandrel clamping shaft | 750W servo motor |
| Cable reel | 1000W servo motor |
| PLC | Taiwan FATEK |
| Human-machine touch screen | 7-inch true color touchscreen |
| Linear guide rail | TaiwanHIWIN |
| Linear module | Domestic precision components |
| Pneumatic components | Xingchen pneumatic |

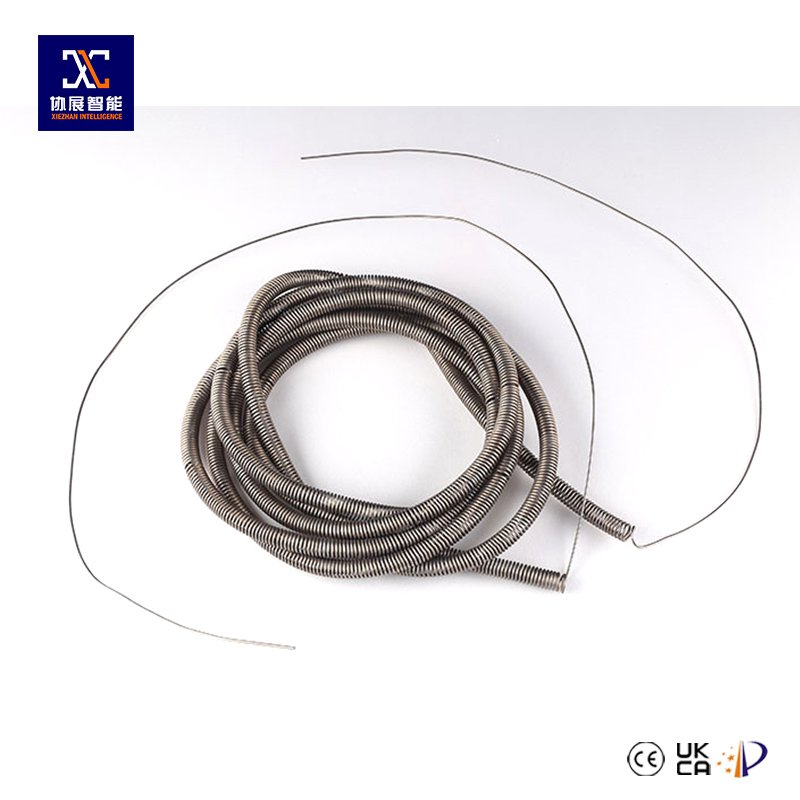

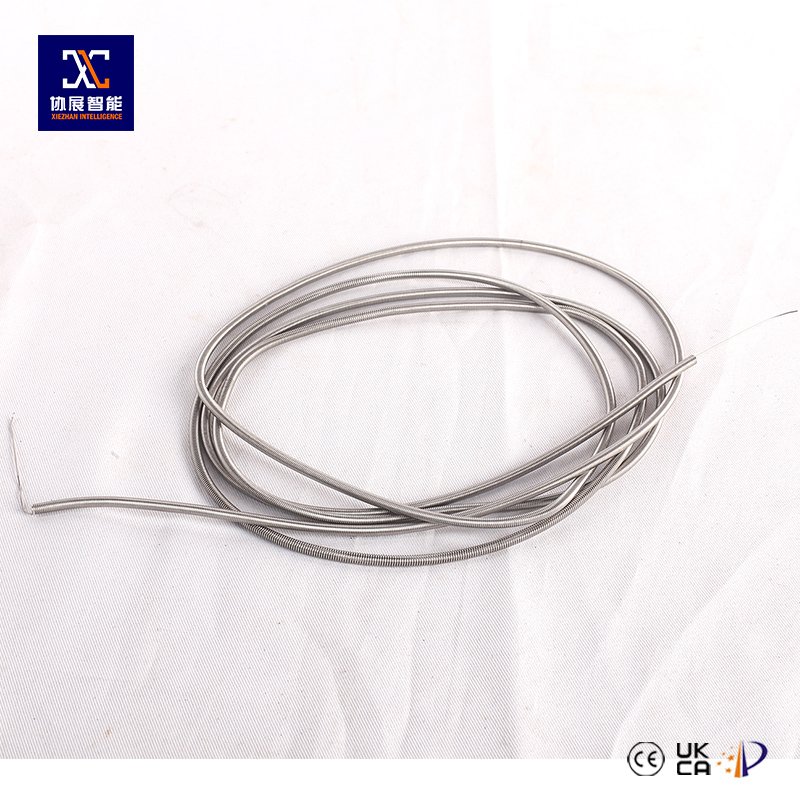

The XZ-T2850 Super Long Spring Heating Wire Winding Machine is designed for processing extra-long spring-shaped heating wires used in appliance and industrial heating systems. Long heating wires are sensitive to tension and pitch variation, which can affect resistance stability and service life. This machine applies controlled feeding and synchronized winding to ensure uniform coil spacing across extended lengths. It is suitable for heating cores used in hair dryers, hot air guns, electric heaters, quartz heating tubes, and industrial ovens. Developed by Guangdong Xiezhan, the XZ-T2850 supports stable, repeatable winding for long heating elements.
Featured Products
-
XZ-T2201 – FULLY AUTOMATIC DUAL HEAD DRIVE FIVE AXIS CNC SPRING HEATING WIRE WINDING MACHINE
-
XZ-B450P Heating Wire Winding Machine for Precision Resistance Heating Coil Production
-
XZ-B315 Deep U Heating Wire Sampling Machine
-
XZ-B360P Deep V Corrugated Heating Wire Winding Machine
-
XZ-B460P Deep U Corrugated Heating Wire Winding Machine for Hair Dryer Heating Coil Production
-
XZ-C1040P Automatic Mica Sheet Heating Wire Winding Machine
In-House Research & Equipment Development
Our equipment design and development are carried out internally, focusing on resistance wire forming, winding stability, and mechanical structure optimization. R&D work is closely connected to real manufacturing conditions, allowing continuous adjustment based on practical production requirements.
Certificates & Technical Documentation
Relevant certifications and technical documents are provided to support equipment compliance and export requirements. These materials reflect manufacturing standards, safety considerations, and documented production processes applied to our equipment.
Equipment Packing & International Delivery
Machines are packed according to equipment structure and transport conditions to reduce handling risks during shipment. International delivery experience supports coordination with different logistics methods and destination requirements.
